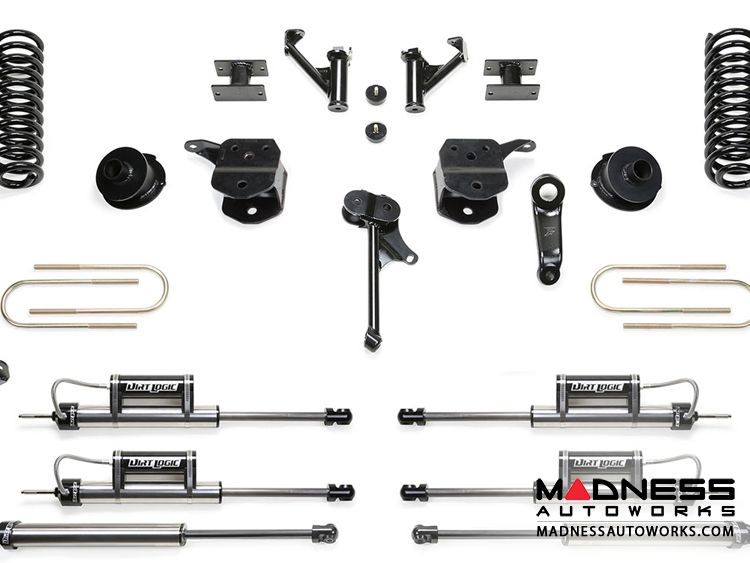

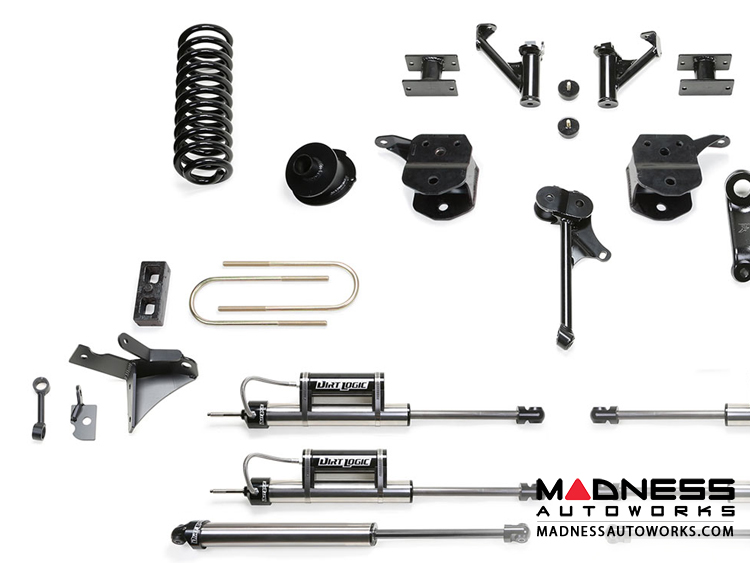

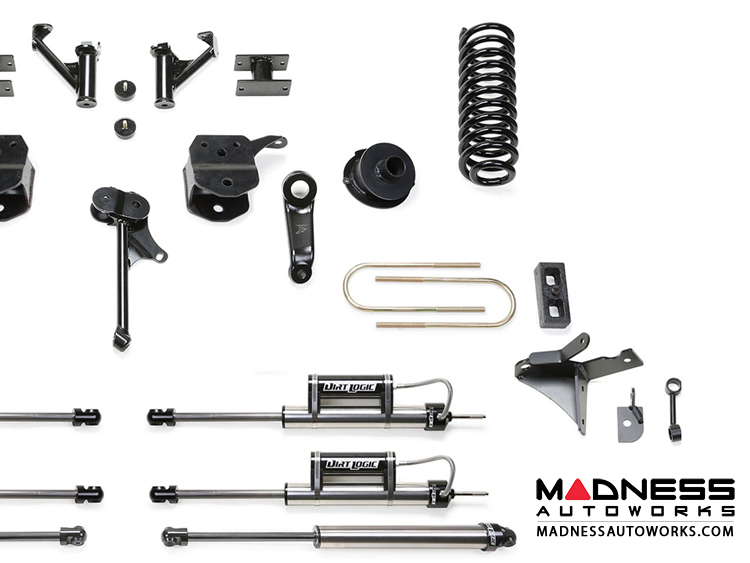

Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD

Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD

Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Dodge Ram 3500 5" Radius Arm System w/ Coil Springs and Dual Dirt Logic Resi and Non Resi 2.25 Shocks by Fabtech (2013 - 2017) 4WD
Product Information

Inquire for Price

Lowest Price Guaranteed
Average Rating
Brand:
Model:
Ram

Available Options

Drive now, Pay later with Affirm
or with PayPal

Both options will be available upon checkout.

Add this 5" Basic Lift Kit by Fabtech to your Dodge Ram 3500 for show stopping looks and performance!

In this kit, Fabtech utilizes straight front coil springs. Fabtech's engineers noticed that the factory springs have a high rate bow style that is not only stiff but also unpredictable. Fabtech’s straight design Spring features a lower spring rate that provides a smoother ride while still retaining the OEM carrying capacity. No other Ram suspension system can offer this.

The rear coil springs are a dual stage design, the first stage provides an OEM quality ride when unloaded. The second stage provides the ability to handle factory carrying capacity loads when required giving the best of both worlds.

Please call us as there are different shock options available (Stealth, Performance, SS Sirt Logic, Resi, Non Resi, Dual or Single)

Dirt Logic Front Resi 2.25 SS Shocks:
  • 2.25" OD Stainless Steel Body
  • 2.0" OD Billet Aluminum Piston
  • 7/8" NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends
  • 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
Rear Dirt Logic SS 2.25 Shocks:
  • 2.25" OD Stainless Steel Body
  • 2.0" OD Billet Aluminum Piston
  • 7/8" NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends
  • Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
Tire Fitment Guide
  • Use 38x13.50/R17 tires w/ 17x9 wheels w/ 5” BS w/ minor trimming
  • Use 38x13.50/R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming
  • Use 38x13.50/R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming
  • Use 38x13.50/R22 tires w/ 22x10 wheels w/ 5” BS w/ minor trimming
Notes:
  • Will not fit gas motors.
  • Will not fit factory air suspension.



CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

About Manufacturer

Located in Chino, California our headquarters spans across five acres. The custom building was constructed to Fabtech's specification for in house development, manufacturing, distribution and administration. The 100,000 square foot facility is divided into designated departments that can operate as a single unit or collectively as a group. This allows Fabtech to function 24 hours a day as needed without compromising security, capacity or quality of the operations.

Fabtech's development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.

New vehicle platforms now require a full integration of the vehicles electronics and sensors into the suspension design in order for the vehicle to properly function. Fabtech has invested into proprietary development processes and technologies to aid in properly designing new vehicle suspension systems that lead the industry.

In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.

To ensure product quality, Fabtech builds all of its componentry in house. The manufacturing division is a world class lean environment dedicated to consistently producing quality parts in low or high volume production runs. Multiple laser cutters, robotic welders, forming equipment, machining centers and skilled welders provide flexibility and quality to its production.

Packaging, warehousing and distribution are contained within the building for immediate shipment world wide. Our Administrative staff provides support to the many divisions that make up the company while our knowledgeable Sales staff assists our valued customers.
