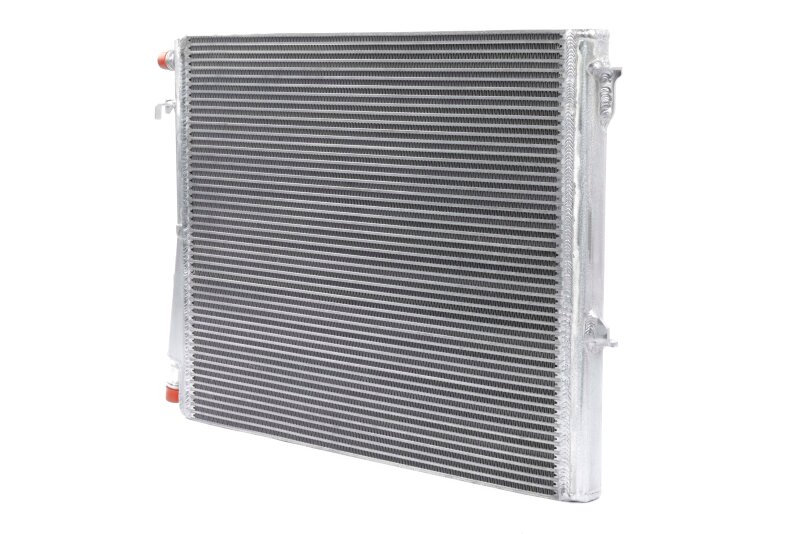

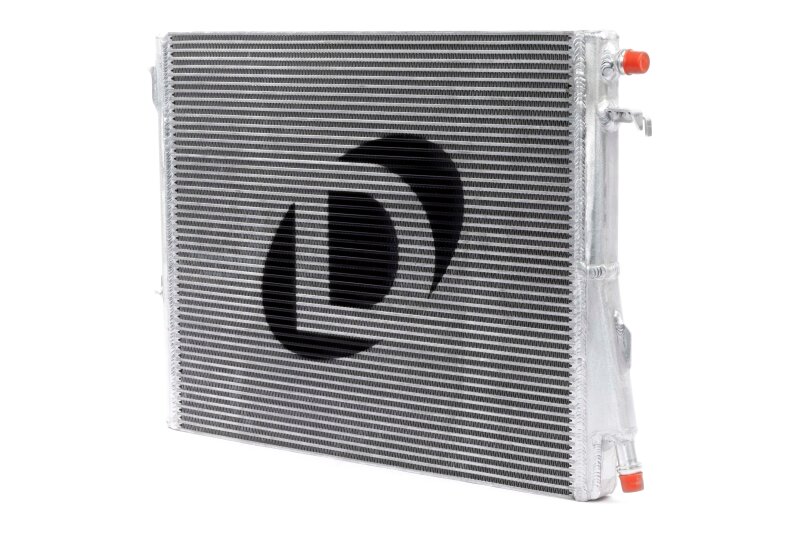

BMW 230i High Performance Heat Exchanger - Dinan - 2022–2026. A direct-fit upgrade engineered to improve charge cooling and overall thermal management on the G42 230i for consistent performance on the street or track.

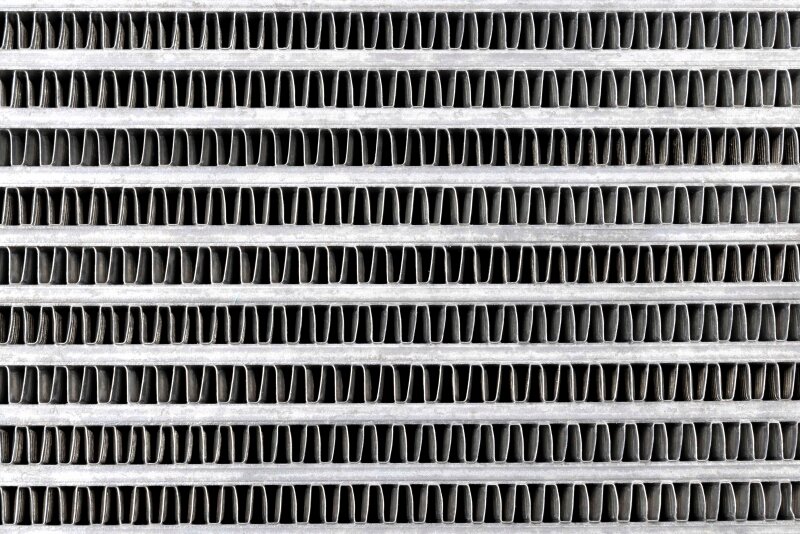

Dinan replaces the factory cooler with a robust 45 mm-thick bar-and-plate core (vs. 26.75 mm OEM) and full-size end tanks, increasing heat transfer surface area by 68% and boosting thermal mass. In Dinan testing over 30 successive WOT pulls, charge air temperatures dropped an average of 8.7°C with peaks near 12°C, helping resist heat soak and power loss. Precision aluminum construction, 100% TIG-welded and pressure tested, maintains durability while remaining a true bolt-on with no modifications required. The design works with the OE coolant routing to aid both charge and engine cooling efficiency.

Features

• 45 mm Dinan core; 26.75 mm OEM
• Approx. 68% more heat transfer area and volume
• Avg. 8.7°C, up to ~12°C charge temp reduction in testing

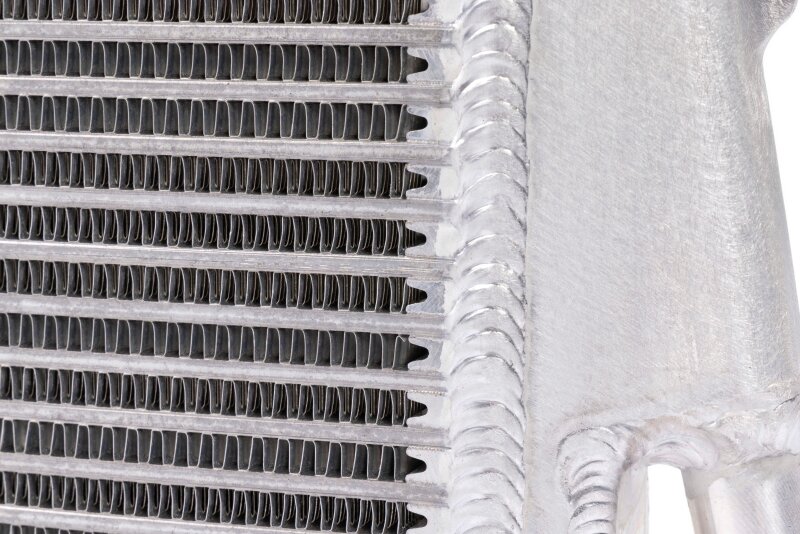

• Bar-and-plate, aluminum, 100% TIG-welded; pressure tested
• Direct-fit replacement; no modifications required
• Helps reduce heat soak and limp-mode tendencies

Have questions or planning a build? Call our specialists in Austin, TX at 512-982-9393 (TX) or the Los Angeles, CA area at 562-981-6800 (CA). We offer professional installation and customization at both locations.

Buying multiple items? Contact us for combined shipping discounts.

We install on premises at both locations.
