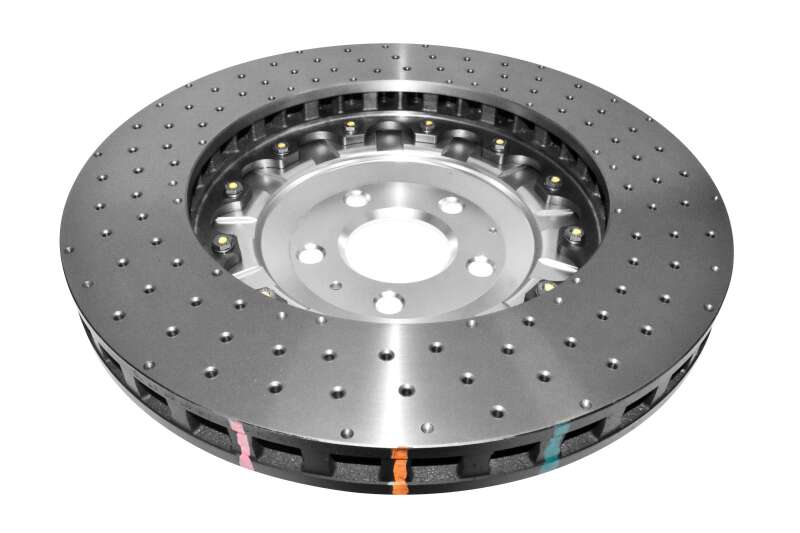

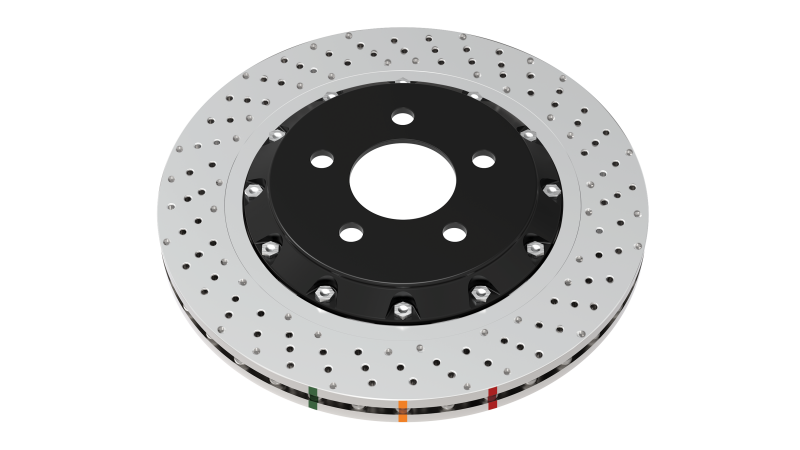

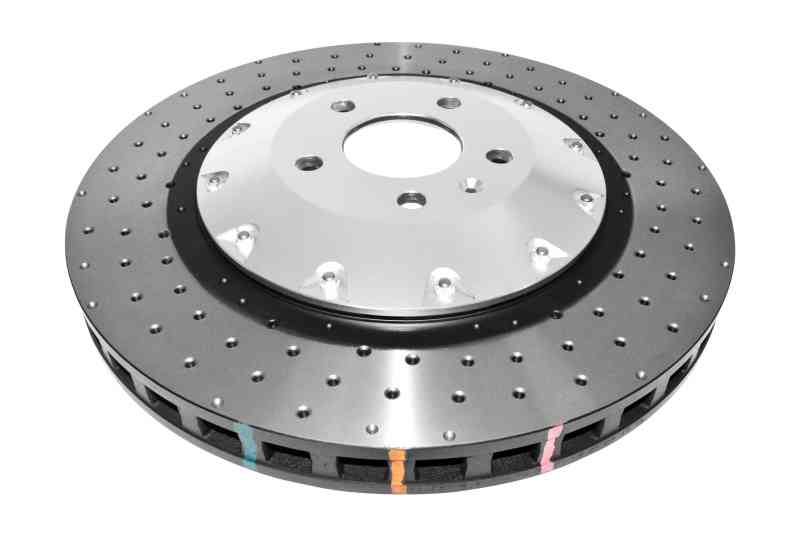

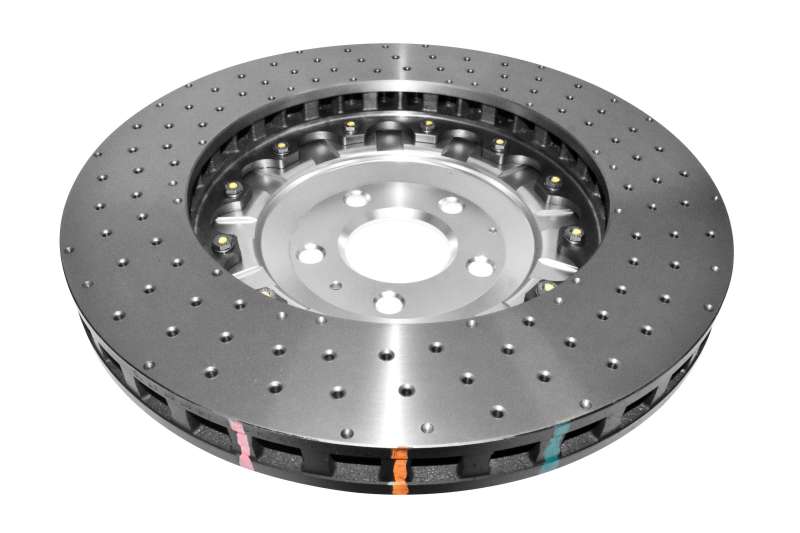

Audi S6 Brake Rotor (1) - Front - DBA - 5000 Series Drilled - Black Hat - `07-`11. A direct-fit, two-piece DBA 5000 Series rotor designed for the front of 2007–2011 Audi S6, combining cast-iron rings with an aluminum hat for reduced unsprung weight and improved thermal behavior.

This DBA 5000 Series drilled/dimpled (XD) rotor uses XG-150 high carbon alloyed iron for the ring and T6061-T6 aerospace-grade aluminum for the hat, joined with National Aerospace Standard (NAS) bolts and crimp nuts. The design reduces rotational mass, manages heat more effectively than a one-piece rotor, and allows uniform radial disc expansion while limiting heat transfer to the hub. The drilled and dimpled pattern offers enhanced structural support and improved cooling over some other finishes. Replacement rings and hats are available from DBA for serviceability.

Features

• Composite 2-piece construction: XG-150 cast-iron ring + T6061-T6 aluminum hat
• Drilled/dimpled (XD) non-directional face for cooling and structural support
• NAS bolts and crimp nuts for aerospace-grade assembly
• TSP (Thermal Stability Profiling) and THGP thermographic paint markings
• Direct replacement for 2007–2011 Audi S6 front application; black finish hat

If you have questions or want help confirming fitment, call us directly at 512-982-9393 (TX) or 562-981-6800 (CA). We have installation and customization services at two locations — Austin, Texas and the Los Angeles, California area — and we install on premises at both locations. If you’re considering purchasing multiple items, contact us for possible shipping discounts.
