Chevrolet Silverado 3500 HD Turbo Swap Kit - Wehrli - S400 Single Turbo Install - Fine Texture Black - 01-04. Designed for the 6.6L LB7, this kit converts the stock IHI layout to an S400-based setup.

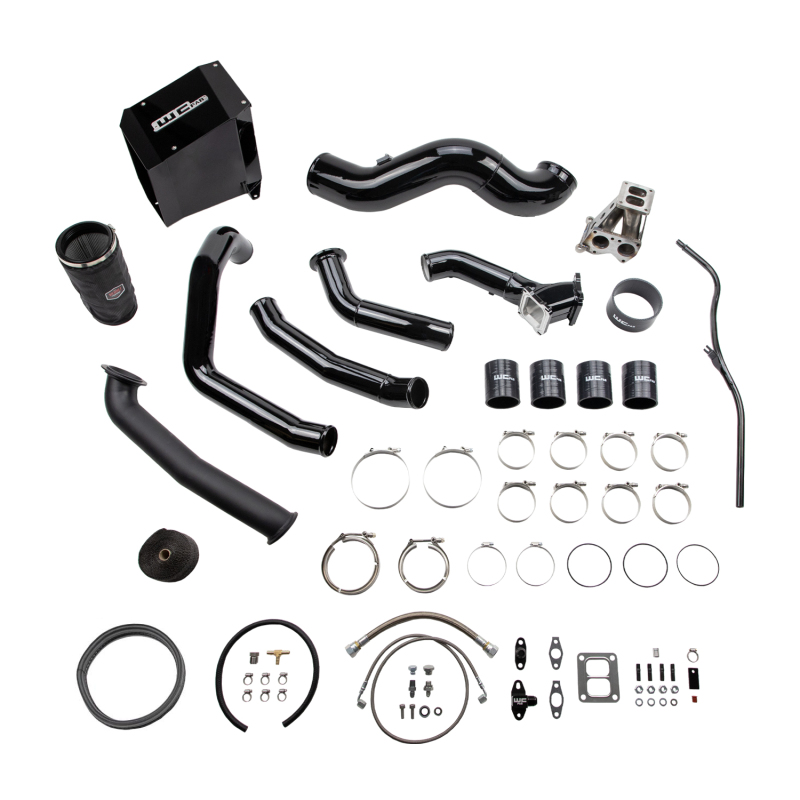

Included are a 5 inch fabricated aluminum intake with heavy-duty 10-gauge air box and premium dry filter with pre-filter, updated 3 inch hot and cold-side 14-gauge mandrel-bent aluminum charge pipes, and a 3 inch fabricated billet high-flow y-bridge. It also includes stainless braided Parker oil lines, a T4 steel pedestal with spacer, and a high-temp ceramic-coated 3 inch downpipe that mates to the factory V-band front pipe (no exhaust cutting). Note: Forward-facing thermostat housing WCF100405 is required on LB7.

Features

• For 2001-2004 GM Duramax LB7 (3500 HD)
• 5" intake with fabricated 10-gauge aluminum air box and lid
• 3" hot/cold 14-ga aluminum charge pipes; 3" billet high-flow y-bridge
• Stainless braided oil feed/drain lines; T4 pedestal and spacer
• 3" ceramic-coated downpipe; V-band to factory front pipe
• Half Marmon S400 outlet (4.6"); not compatible with HX40
• Includes silicone boots, stainless T-bolts, V-bands, heat wrap, and driver-side trans dipstick tube; SXE/race cover builds are made to order
