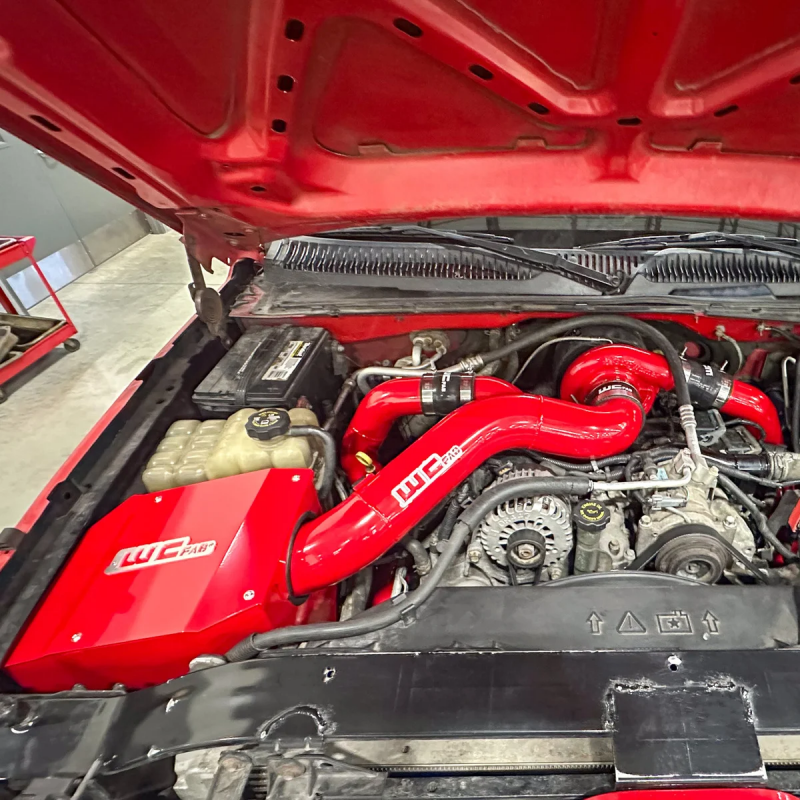

Chevrolet Silverado 3500 HD Turbo Swap Kit - Wehrli - S300 - Semi-Gloss Black - 2001-2004. This kit swaps your 6.6L LB7 from the stock IHI turbo to an S300-frame setup for a clean install and improved airflow potential.

Built by WCFab, it upgrades the intake and charge plumbing end to end: a 4" fabricated aluminum intake with heavy-duty air box and premium dry filter with pre-filter cover, 3" 14-gauge mandrel-bent hot and cold-side tubes, and a 3" fabricated billet Y-bridge to reduce restriction. Stainless braided oil feed and drain lines route from the main oil galley. The T4 pedestal accepts popular S300 options (turbo sold separately), and the ceramic-coated 3" HX40 downpipe connects to the factory front-pipe V-band, so no exhaust cutting is required. Note: WCFab forward-facing thermostat housing WCF100405 is required; HX40 turbine outlet machining is needed.

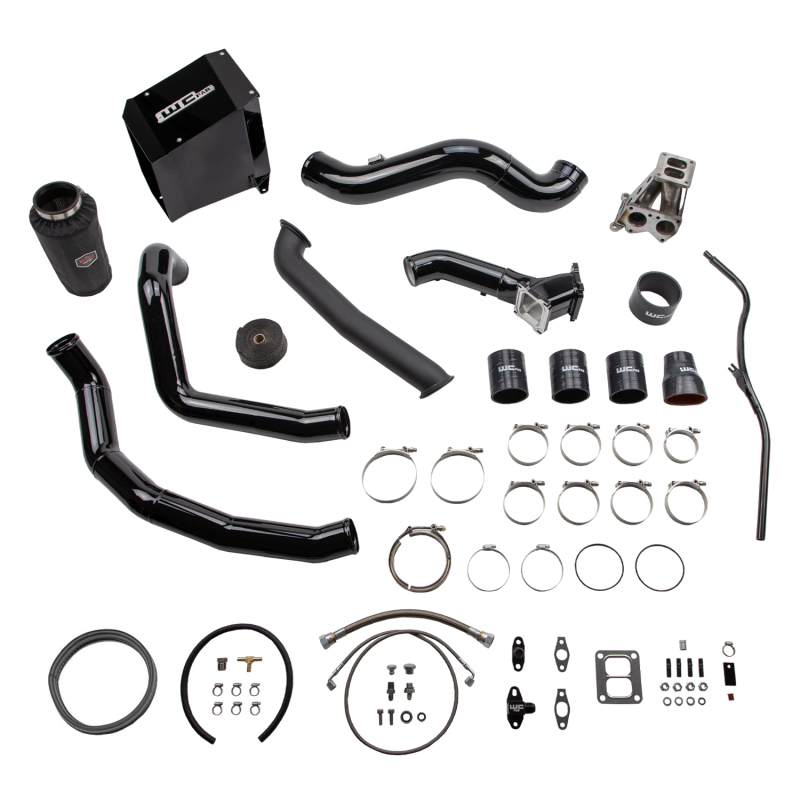

Features

• 4" intake with fabricated aluminum air box and lid
• 3" billet Y-bridge and cold-side pipe
• 3" one-piece hot-side intercooler pipe
• T4 pedestal; compatible with WCFab 2" high-flow up-pipes

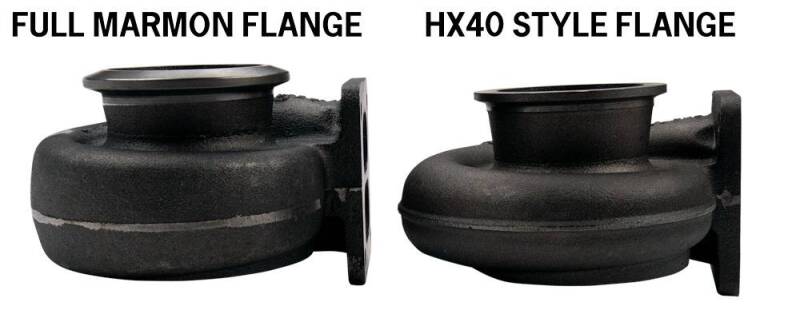

• HX40-style 3" ceramic-coated downpipe to factory V-band
• Driver-side trans dipstick relocation, silicone boots, T-bolt and V-band clamps, heat wrap
• Semi-gloss black powder coat; Made in USA

Have questions or need fitment guidance? Call our team—installation and customization are available at our Austin, TX and Los Angeles, CA area locations: 512-982-9393 (TX), 562-981-6800 (CA).

Considering multiple items? Contact us for shipping discounts. We install on premises at both locations.
