Chevrolet Silverado 3500 HD Turbo Swap Kit - Wehrli - S300 - Flat Black - 01-04. This single fixed-vane kit converts the factory IHI setup on the 6.6L LB7 to an S300-based system, delivering robust airflow with a clean, serviceable layout.

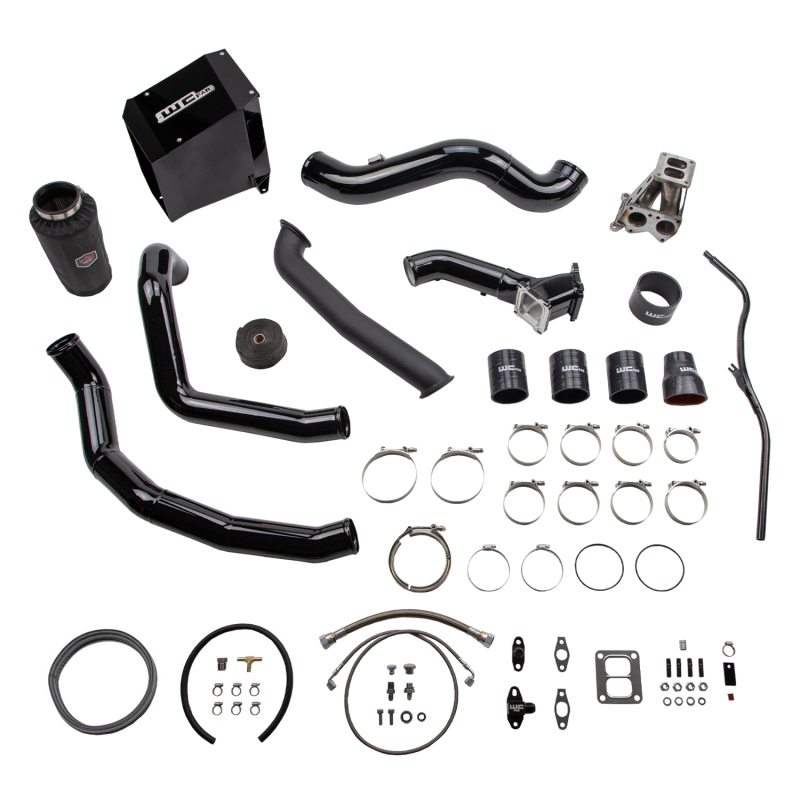

Built by Wehrli Custom Fabrication, the kit replaces the intake and charge piping with a 4 inch fabricated aluminum intake, heavy-duty air box, premium dry filter with pre-filter, and 3 inch 14-gauge mandrel-bent hot and cold-side tubes. A 3 inch high-flow fabricated billet Y-bridge removes the restrictive stock upper manifold. The ceramic-coated 3 inch downpipe connects to the existing front pipe via V-band, so no cutting of the exhaust is required. Includes stainless braided Parker oil lines, T4 steel pedestal with spacer, silicone boots, clamps, heat wrap, and driver-side trans dipstick relocation. If you’re supplying the turbo, provide brand/specs; mock-up may be required and lead time begins once your turbo is received.

Features

• 2001–2004 Silverado 2500/3500 HD LB7 compatibility
• Supports popular S300 turbos on T4 mount (turbo sold separately)

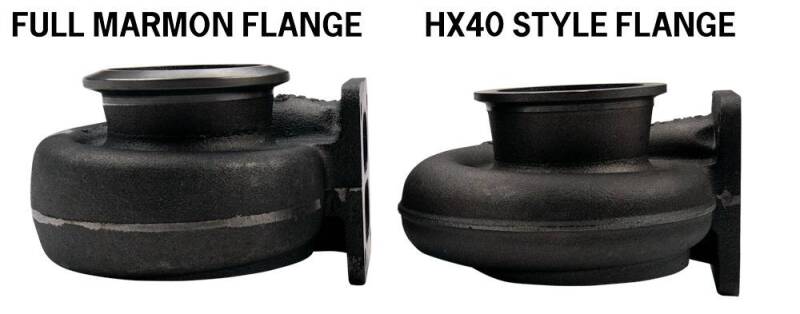

• HX40-style turbine outlet required for downpipe
• Forward-facing thermostat housing required (WCF100405)
• 4" intake with 10-gauge aluminum air box and lid
• Made in USA, Flat Black powder coat

Have questions or need fitment guidance? Call our Austin, TX shop at 512-982-9393 or our Los Angeles, CA area shop at 562-981-6800. We offer professional installation and customization at both locations.

Buying multiple items? Contact us for shipping discounts. We install on premises at both locations.
