Ford SVT Raptor RXT 3.0 Remote Reservoir Bypass Shocks - Rear free shipping
From the brutal deserts of the Southwest, to the deep snow of Michigan’s U.P., to the wooded trails of the East coast, this suspension system has been put to the test and performed flawlessly so upgrade your Ford SVT Raptor now!

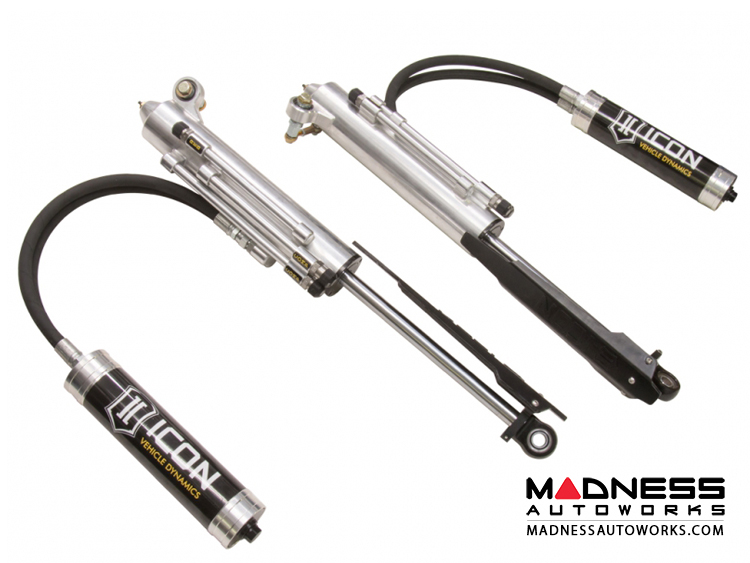

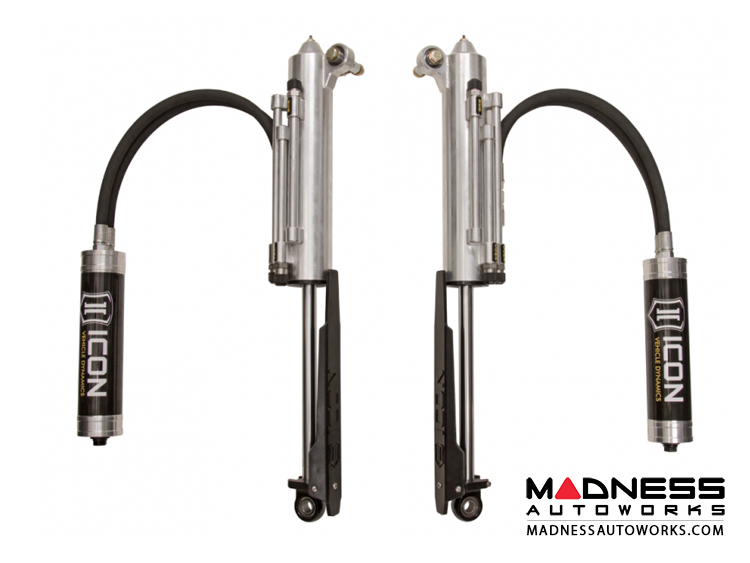

The RXT 3.0 Rear Bypass shock with 3.0 Dual Hose Remote Reservoir is truly the next level in Ford Raptor Performance for the rear of your truck. Although this RXT 3.0 can be used as a stand-alone Raptor rear shock, the full potential is achieved when combined with the #95120 Bump stop kit and #95220 RXT Multi-Rate Rear Leaf Springs. When all three of ICON's uniquely engineered products are "bolted" on together, you will gain 20% more up-travel and 30% more down-travel over stock leaving you with 15 inches of usable rear wheel travel overall. The desire for increased up-travel was answered with a unique side-mount eyelet approach that allowed manufacturers engineers to develop a shock shorter in collapsed length, longer at extension, and still fits in the factory mounting location. A 3.0 Dual Hose Recirculating Reservoir (Patent Pending) incorporates a check valve that allows hot fluid in the shock body to be exchanged with cooler fluid in the reservoir. The result of this is the ability of the Raptor to be driven harder for longer periods of time without the worry of shock fade and degraded performance.

These RXT Rear 3.0 Remote Reservoir Bypass Shocks are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles. Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel. These same bypass valves feature dampened valve stops for quiet and precise operation. That means no clicking noises as you hit bumps or road chatter driving down the road. The biggest difference in these shocks versus an industry standard bypass shock, are the included “Easy-to-Adjust” knobs and the replaceable bypass tubes. The “Easy to Adjust” High Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer. Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.

Features:
  • 3.0 RXT 3 tube bypass rear shock with 3.0 remote reservoir
  • Unique side-mounted upper eyelet allows for increased up-travel while utilizing factory mounting location
  • Recirculating Dual Hose Reservoir (Patent Pending) keeps shock temperatures low by pumping heat to the reservoir for increased dissipation
  • Anti-Wobble Link (Patent Pending) keeps bypass tubes clear of leaf spring and tire
  • Easy-to-Adjust detented adjustment knobs offer quick adjustability without the use of tools
  • High resolution bypass valves designed for noticeable fine tune adjustments in rebound and compression
  • High flow CNC machined welded bypass blocks designed to increase fluid flow for enhanced performance & high definition tuning
  • Replaceable bypass tubes that can easily be replaced if damaged

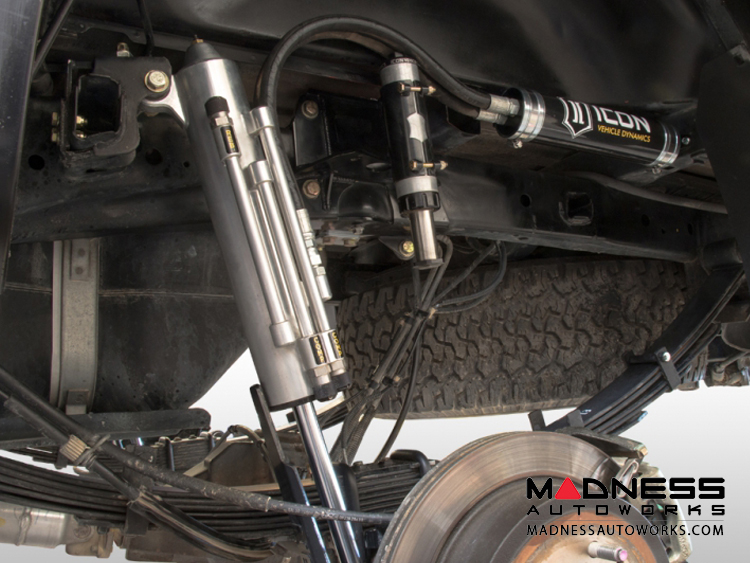

  • Direct bolt in to OEM location with bypass adjustment knobs easily accessible for tuning adjustment
  • Special engineered damped valve seats for quiet and precise operation without the standard bypass loud “clicking” noise you will find with other brands
  • Multi stage cad plated finish with polished and anodized top cap / rod ends
  • Protective shin guards standard with every kit



CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

About Manufacturer

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUV’s and off road suspension development. The company’s business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.
