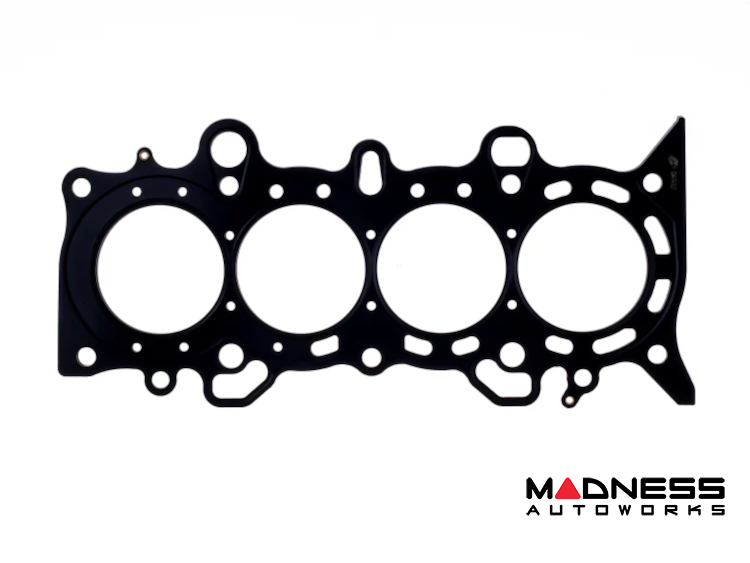

Introducing the Honda Civic CG Head Gaskets, a top-of-the-line component built to ensure optimum sealing performance for high-output engines. Perfectly crafted for Honda D17A1/D17A2/D17A6 2001-2005 1.7L SOHC 78mm engines, this head gasket is designed to meet the rigorous demands of modern vehicles, supporting both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks.

Our Honda Civic CG Head Gasket is engineered with Cometic MLS (Multi-Layer Steel) technology, which is renowned for its exceptional durability and reliability. The gasket is composed of multiple embossed layers of stainless steel, providing increased strength and corrosion resistance. The outer layers are coated with Viton, a flouroelastomer rubber material that can withstand temperatures up to 250°C (482°F). This coating not only enhances temperature resistance but also allows for the gasket to rebound under various load conditions, maintaining a robust seal even in harsh environments.

Features

• Comprised of multiple embossed layers of stainless steel.
• Outer layers feature a Viton rubber coating for enhanced durability.
• Compressed operating thickness of 0.027".
• Heat resistant to 250°C (482°F).
• Compatible with aluminum and cast iron blocks.
• No additional sealants required.

Each layer of the gasket plays a critical role in its function. The outer Viton-coated layers are designed for maximum resilience in adverse sealing environments, while the center uncoated stainless steel layer can be adjusted to meet various thickness requirements. This structural integrity ensures that the Honda Civic CG Head Gasket can withstand the shearing forces produced between different material blocks, delivering consistent performance over time.
