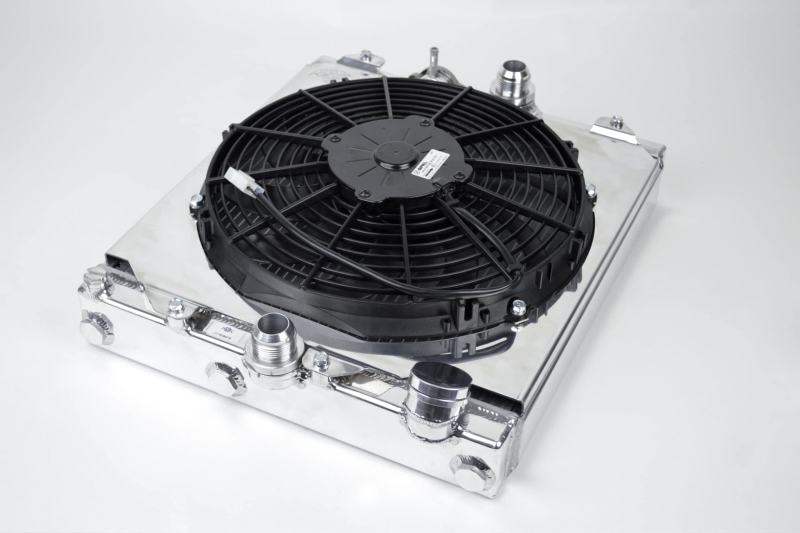

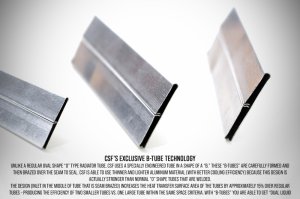

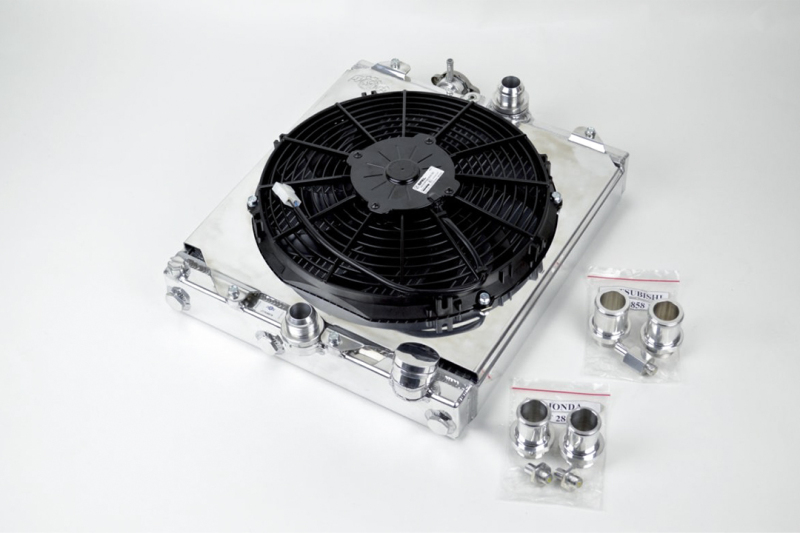

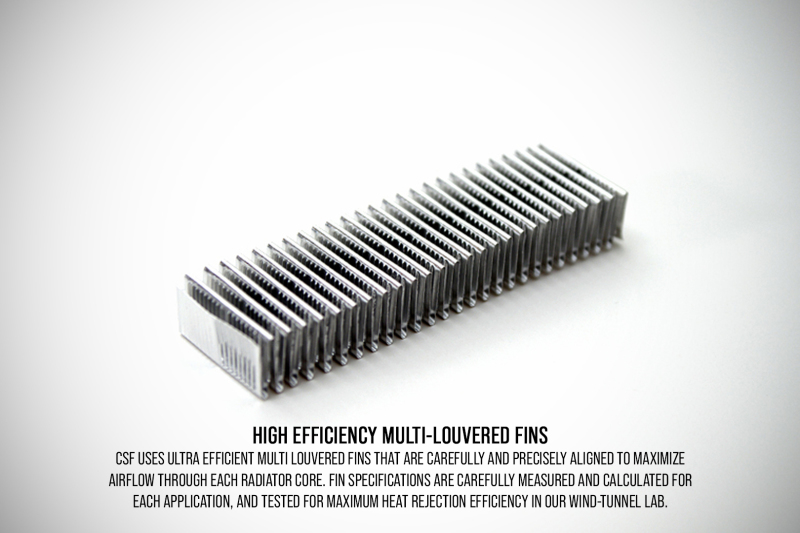

CSF has created the Ultimate Half radiator with direct fitment for the most popular 92-00 Honda Civic platform. Even better, it can be used as a universal radiator and comes with a direct-fitment kit for Mitsubishi Evolution 7/8/9 models as well. A true innovation of the industry's #1 selling model. Take your set up to the next level with this Half sized radiator. This radiator features a 2-Row core with CSF's exclusive B-Tube Technology: Unlike a regular oval shape "O" type radiator tube, CSF uses a specially engineered tube in the shape of a "B". These "B-tubes" are carefully formed and then brazed over the seam to seal. CSF is able to use thinner and lighter aluminum material (with better cooling efficiency) because this design is actually stronger than normal "O" shape tubes that are welded. The design (inlet in the middle of the tube that is seam brazed) increases the heat transfer surface area of the tubes by approximately 15% over regular tubes - producing the efficiency of two smaller tubes vs. one large tube within the same space criteria. With "B-tubes" you are able to get "dual liquid laminar flow". CSF also uses ultra efficient multi louvered fins that are carefully and precisely aligned to maximize airflow through each radiator core. Fin specifications are carefully measured and calculated for each application, and tested for maximum heat rejection efficiency in our wind-tunnel lab.. CSF manufactures the most advanced and efficient radiator in the industry for your Evo/Civic/Custom Application. CSF uses innovative tube and fin technologies with industry-leading testing methods to maximize airflow and heat dissipation.. The CSF #2858X is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.. "Drop-in Fit" Requiring No Modifications to Install - Accepts All Attaching OEM Components Including "Quick Connect" Hoses, AC Condenser, Mounting Brackets and Fan Shroud. Core Features an Ultra-Efficient Fin with 6.5mm Fin Height and Multi-Louvered Design for Maximum Surface Area Contact. CSF Universal Half Radiator w/-16AN & Slip-On Fittings/12in SPAL Fan & Shroud. Universal Half Radiator - Evo 7/8/9 / 92-00 Civic - w/ SPAL Fan & Shroud. 2-Row 42mm Core (Dual Core) Featuring CSF's Exclusive B-Tube Technology. CNC Machined Brackets and Fittings for Superb Fit and Durability. CNC Machined "Quick-Connect" Inlet/Outlet Connections. All-Aluminum Race Style Drain Plug. 1-Hour "Mirror Finish" Hand Polish. CSF 2858X - Universal Radiator. CSF Radiator. csf2858X. Radiator
