BMW 1 Series Radiator - CSF - High-Performance All-Aluminum with 2-Row Core and B-Tube Technology - `11-`27
BMW 1 Series Radiator - CSF - High-Performance All-Aluminum with 2-Row Core and B-Tube Technology - `11-`27
Available Options
Drive now, Pay later with Affirm
or with PayPal
Both options will be available upon checkout.

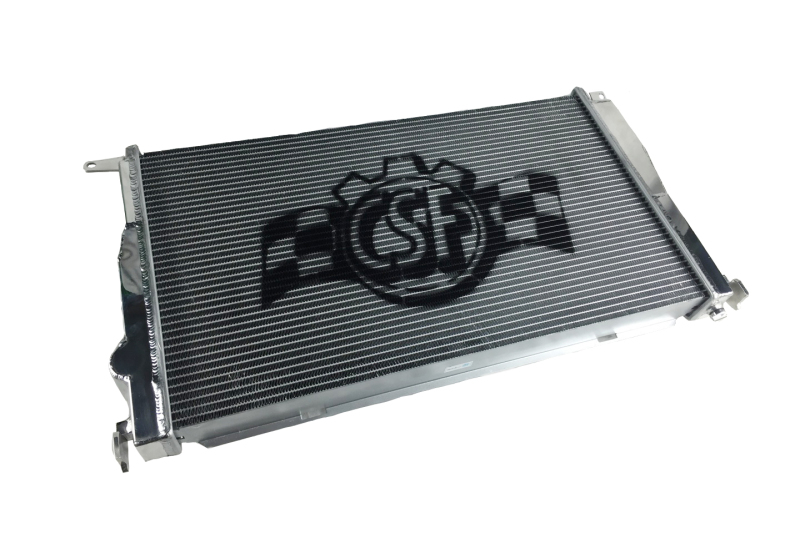

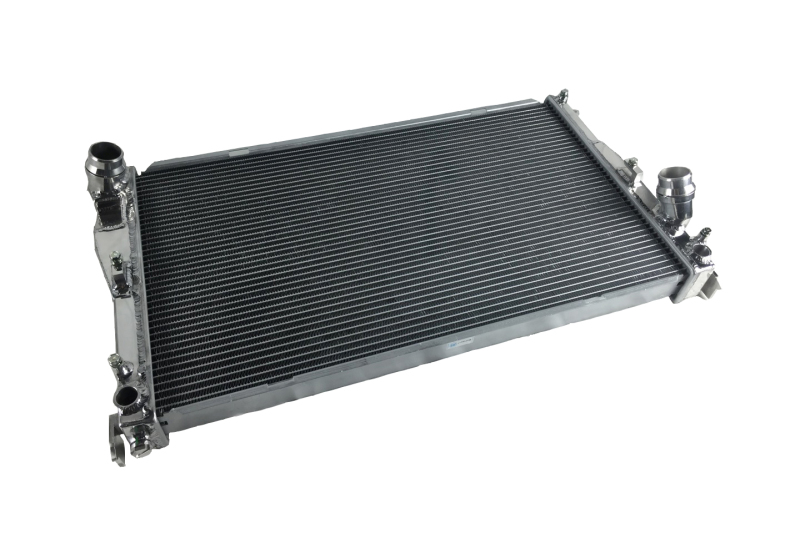

CSF High-Performance All-Aluminum Radiator for BMW 1 Series. This direct-fit 2-row upgrade with B-Tube technology is engineered to keep your 1M, 135i, 335i, and Z4 (A/T only) running cool on the street or at the track.

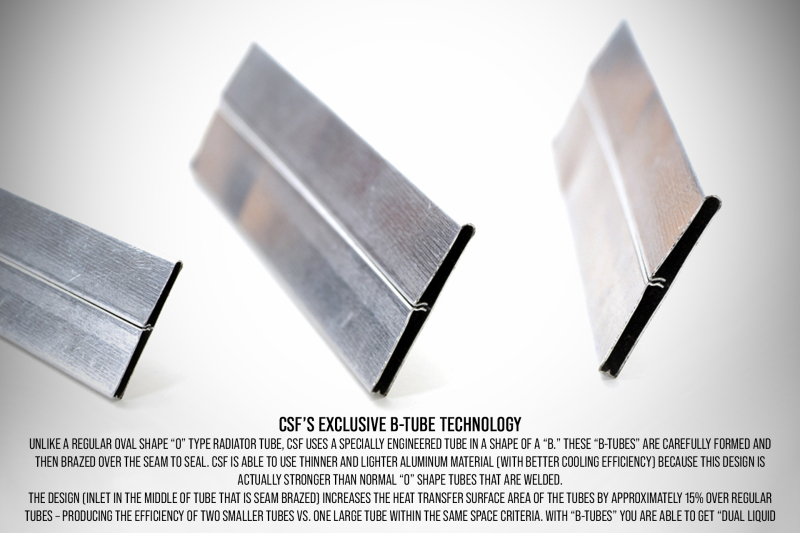

CSF’s 42 mm dual core uses exclusive B-shaped tubes that increase internal surface area and promote dual laminar flow for improved heat rejection, while ultra-efficient multi-louvered fins maximize airflow through the core. OE-style CNC machined brackets and quick-connect inlet/outlet let you reuse factory hoses, fan shroud, and condenser, with durable all-aluminum construction and a race-style drain plug. Designed as a true drop-in in the OEM location; see fitment notes if your E9X uses BMW 17117788903.
Features
- 2-row 42 mm core with CSF exclusive B-Tube technology

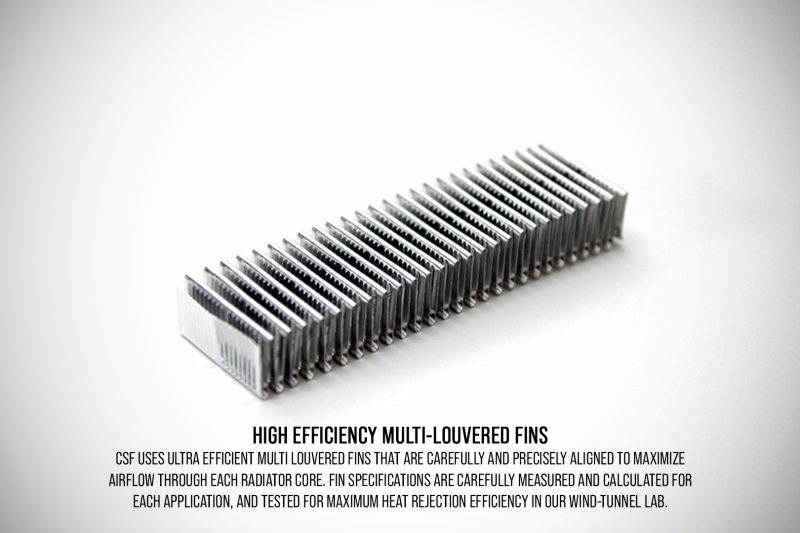

- Multi-louvered fins with 6.5 mm fin height

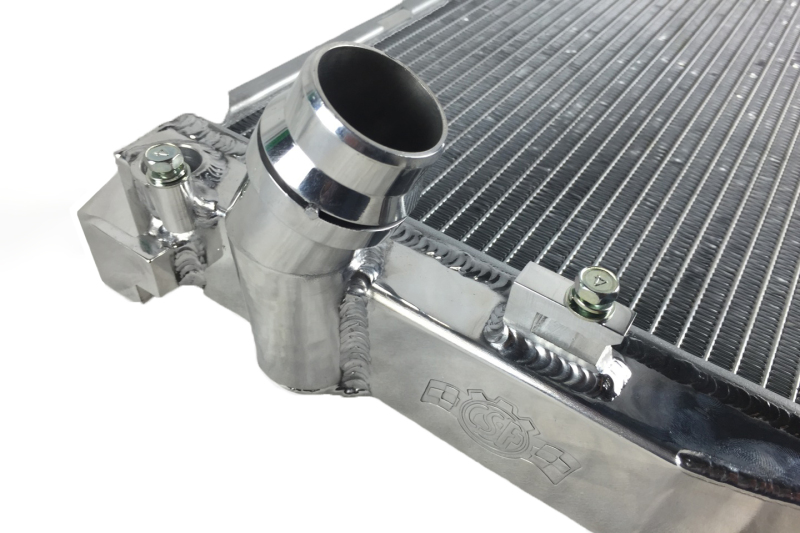

- CNC machined brackets and quick-connect fittings
- All-aluminum build with smooth satin finish and race-style drain
- Accepts OEM components for straightforward installation
Have questions or planning a build? Call our Austin shop at 512-982-9393 or our Los Angeles area shop at 562-981-6800. We offer installation and customization services at both locations.
Buying multiple items? Contact us for combined shipping discounts. We install on premises at our Austin, TX and Los Angeles, CA locations.
