Chevrolet Silverado 3500 HD Turbo Swap Kit - Wehrli - S400 - Sparkle Bomber Orange - 01-04. This WCFab single-turbo install kit converts your 6.6L LB7 from the stock IHI to an S400-style system in a durable Sparkle Bomber Orange finish.

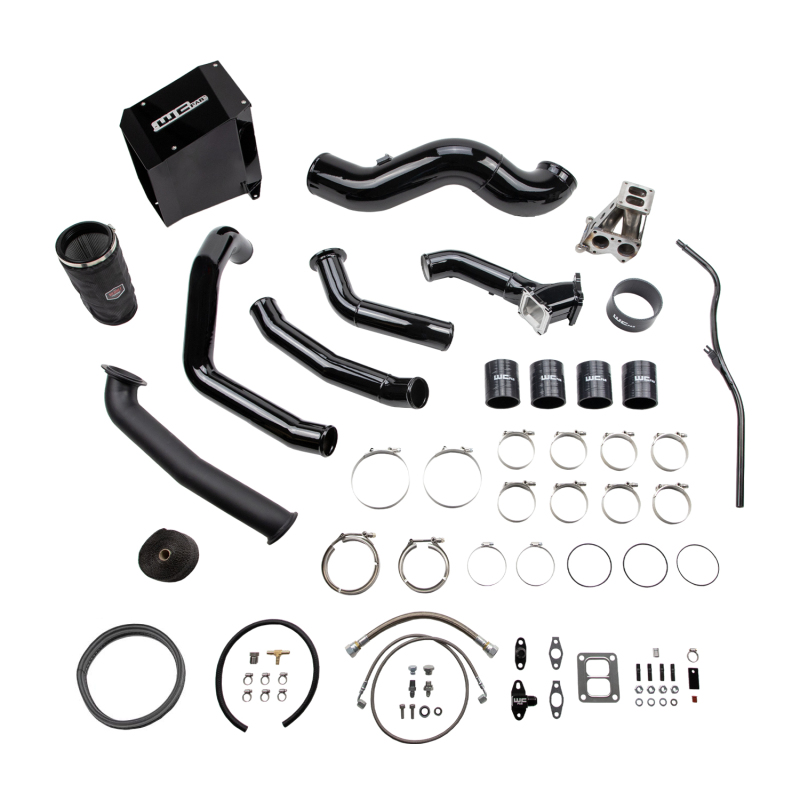

Built for precise fit and strong airflow, this big-single kit supports a T4-mounted S400 by upgrading the intake, charge plumbing, and upper intake tract. It includes a 5 inch fabricated aluminum intake with heavy-duty air box and dry filter, 3 inch mandrel-bent 14 gauge hot- and cold-side tubes, and a 3 inch fabricated high-flow billet Y-bridge. The ceramic-coated 3 inch downpipe mates to the factory front pipe (Half Marmon 4.6 inch S400 outlet). Braided Parker oil lines, clamps, boots, heat wrap, and a driver-side transmission dipstick relocation tube are included. Forward-facing thermostat housing WCF100405 is required on LB7. Turbo sold separately; SXE/race-cover builds are made to order. Non-BorgWarner turbos may need to be sent for mock-up; lead time begins upon receipt. Compatible with WCFab 2 inch up-pipes.

Features

• 2001–2004 Chevy Silverado 2500/3500 HD 6.6L LB7 fitment
• T4 pedestal and spacer for S400-style turbos
• 5 inch intake with fabricated 10 gauge aluminum air box and lid
• 3 inch hot/cold intercooler piping and 3 inch high-flow fabricated Y-bridge
• 3 inch ceramic-coated downpipe; Half Marmon 4.6 inch S400 outlet; V-band to factory front pipe
• Braided Parker oil lines; includes clamps, boots, V-bands, heat wrap; Sparkle Bomber Orange finish; Made in the USA

Have questions or need help choosing components? Call our team. We offer installation and customization at our Austin, Texas and Los Angeles, California area shops: 512-982-9393 (TX), 562-981-6800 (CA).

Buying multiple items? Contact us for shipping discounts. We install on premises at both locations.
