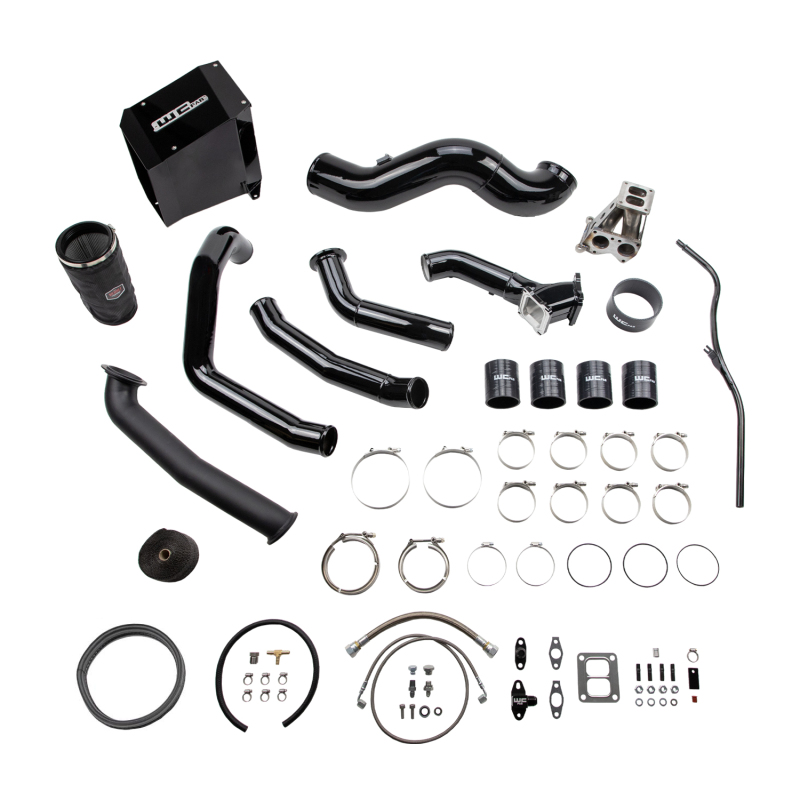

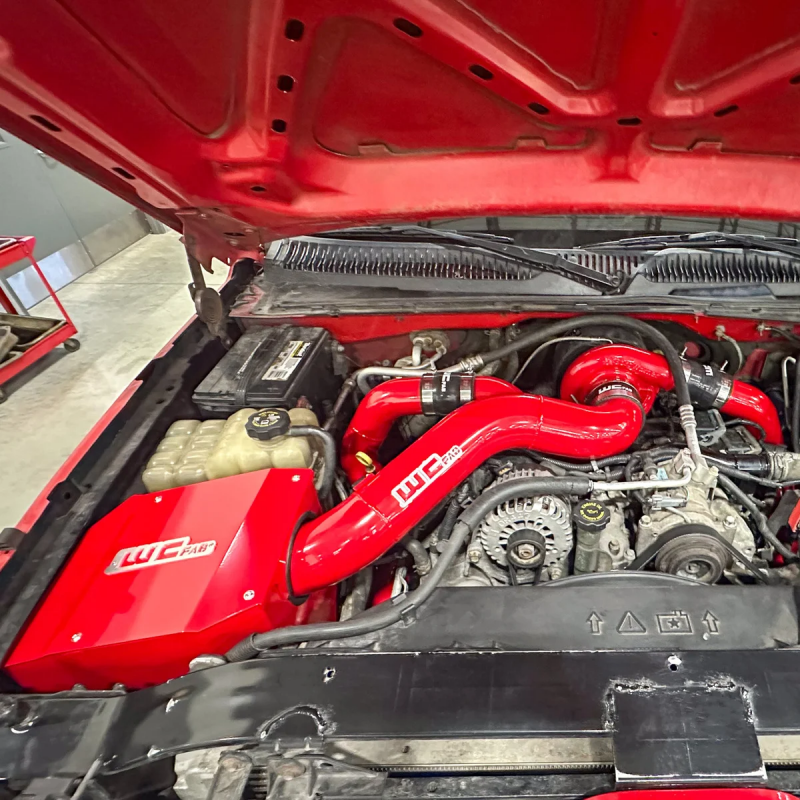

Chevrolet Silverado 3500 HD Turbocharger Kit – Wehrli S400 Single Turbo Install (Sparkle Granny Smith, 01–04). Converts the factory IHI turbo on 6.6L Duramax LB7 trucks to an S400-frame setup with proven components.

Built by Wehrli Custom Fab, this kit upgrades the intake and charge-air path for reliable flow. A 5-inch fabricated aluminum intake with air box and dry filter feeds 3-inch, 14-gauge mandrel-bent hot and cold pipes. The 3-inch billet Y-bridge replaces the restrictive upper manifold. Stainless braided Parker oil lines route feed from the main oil galley. A T4 steel pedestal accepts popular S400 sizes (turbo sold separately), and the high-temp ceramic-coated downpipe mates to the factory front pipe via V-band. Note: forward-facing thermostat housing WCF100405 required for LB7 clearance.

Features

• 5" intake with fabricated air box and lid; dry filter with pre-filter cover
• 3" 2-piece hot-side (V-band at compressor) and 3" cold-side; 14G mandrel-bent aluminum
• 3" billet high-flow Y-bridge; stainless braided oil feed/drain; T4 pedestal and spacer
• Ceramic-coated downpipe for Half Marmon S400 (4.6"), mates to factory V-band; not HX40; hardware included; Sparkle Granny Smith finish; Made in USA

Questions or turbo selection help? Call our Austin, TX or Los Angeles, CA area shops—we offer installation and customization at both: 512-982-9393 (TX), 562-981-6800 (CA).

Buying multiple items? Contact us for shipping discounts. We install on premises at both locations.
