Chevrolet Silverado 3500 HD Turbocharger Kit – Wehrli S300 Single Turbo Install Kit – Sparkle Copper – 01–04. Built for the 6.6L Duramax LB7, this kit converts the factory IHI turbo setup to an S300-style system using proven, high-flow components.

Engineered by WCFab, it includes a 4" fabricated aluminum intake with heavy-duty air box and dry filter, updated 3" hot/cold intercooler piping in 14-gauge aluminum, and a 3" fabricated billet y-bridge to reduce restriction. A T4 steel pedestal accepts popular S300 options (turbo sold separately), while a ceramic-coated 3" downpipe connects to the existing exhaust front-pipe V-band. HX40 outlet at the turbo is required. Forward-facing thermostat housing (WCF100405) is required for clearance. Stainless braided Parker oil feed/drain lines, clamps, and hardware are included.

Features

• 4" fabricated intake, heavy-duty air box, dry filter with pre-filter
• 3" hot/cold intercooler piping, 14-gauge mandrel-bent aluminum
• 3" fabricated high-flow billet y-bridge and cold-side pipe

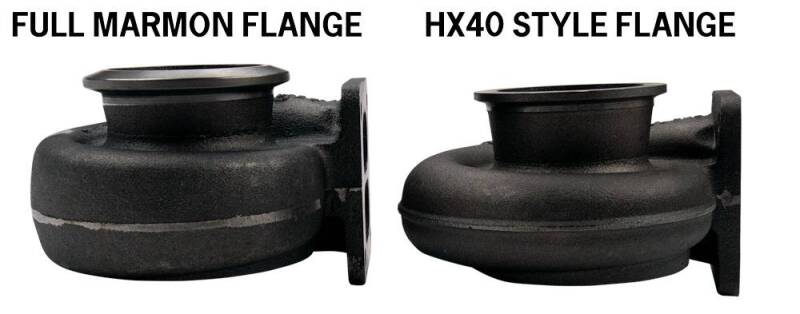

• T4 turbo pedestal; ceramic-coated 3" downpipe (HX40 outlet required)
• Stainless braided Parker oil lines; clamps, V-bands, heat wrap
• Sparkle Copper powder coat; Made in USA

Questions about turbo selection or fitment? Call our experts in Austin or the Los Angeles area. We offer installation and customization at both locations: TX 512-982-9393, CA 562-981-6800. Considering multiple items? Contact us for shipping discounts. We install on premises at both locations.
