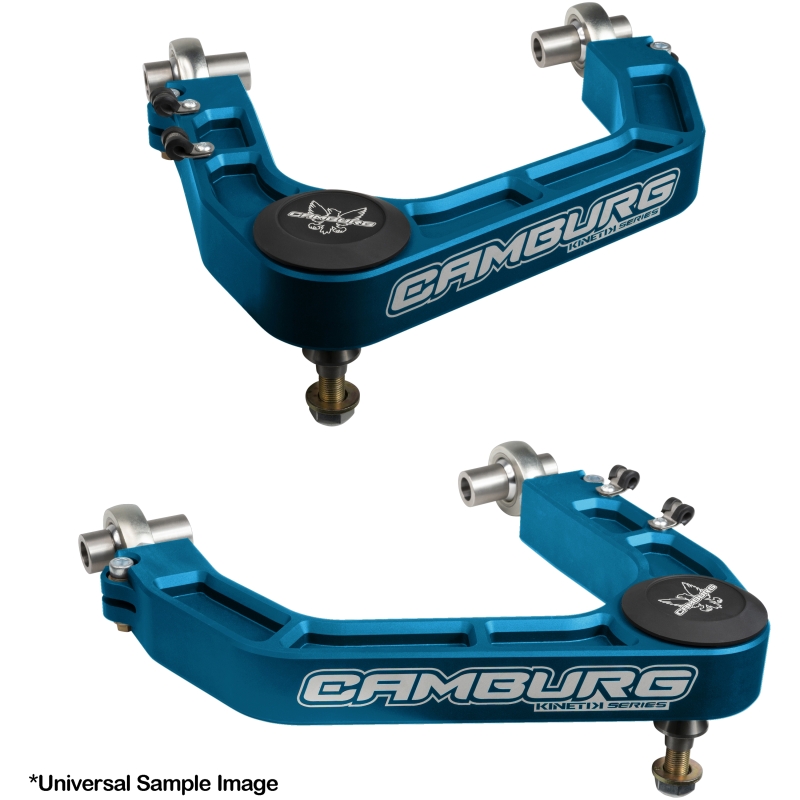

Ford Ranger Suspension Control Arm Kit - Camburg - KINETIK V2 Performance Billet Uniball - Blue - `19-`23 is a direct-fit upper control arm solution engineered for 2019–2023 Ford Rangers. These CNC-machined billet arms replace weak factory ball joints and increase usable wheel travel for demanding on- and off-road use.

Designed and machined from 6061 billet aluminum, each arm is bead-blasted, Type II anodized blue and laser-etched with the Camburg logo. The KINETIK V2 uses a larger FK 1.25" uniball with a PTFE liner for improved strength and misalignment capacity, and model-specific heat-treated stainless spacers ensure a precise taper fit to the spindle/knuckle with no drilling required. FK 7/8" chromoly heim joints provide added camber and caster adjustment while eliminating flex under load. Hardware is AN/Mil-spec with a single pinch bolt and secondary jam nut to secure the heim for durable service. Depending on wheel size, offset, and tire choice you may need minor body or fender adjustments to prevent rubbing.

Features

• 6061 billet aluminum construction, bead-blasted and Type II anodized blue
• FK 1.25" uniball with PTFE liner for increased travel and durability
• Heat-treated stainless steel, model-specific spacers; no drilling required
• FK 7/8" chromoly heim joints for camber/caster adjustment
• AN/Mil-spec hardware with pinch bolt and jam nut retention
• Direct fit for Ford Ranger 2019–2023 (2WD/4WD); made in the USA

If you have questions or want help confirming fitment, call us directly — we’re happy to advise. We have two locations with installation and customization services: Austin, Texas and the Los Angeles, California area. Call: 512-982-9393 (TX) or 562-981-6800 (CA). If you’re considering multiple items, contact us for shipping discounts. We install on premises at both locations.
