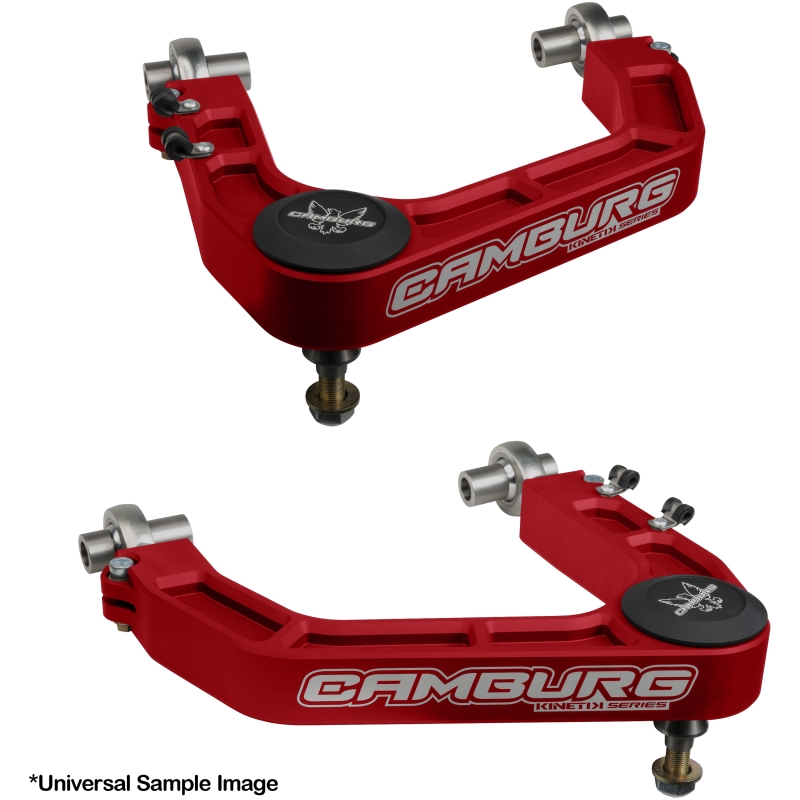

Ford Ranger Suspension Control Arm Kit - Camburg - KINETIK V2 Performance Billet Uniball - Red - 2019-2023. High-quality billet upper control arms engineered to replace weak factory ball joints and provide increased wheel travel, adjustability, and durability for off-road and performance use.

Designed with CAD and precision machining, these KINETIK V2 arms are CNC-machined from 6061 aerospace-grade billet aluminum, bead blasted and Type II anodized red with the Camburg logo laser etched. They use a larger 1.25" FK uniball with a PTFE liner to improve strength and misalignment tolerance, and model-specific stainless steel spacers that match the factory taper — no drilling or spindle modification required. Heavy-duty FK 7/8" chromoly heim joints allow for camber and caster adjustment while minimizing deflection under load. Hardware is AN/Mil-spec with a single pinch bolt and secondary jam nut to secure the heim for demanding use.

Features

• CNC 6061 billet construction, bead blasted and Type II anodized red
• 1.25" FK uniball with PTFE liner for increased travel and durability
• Heat-treated stainless spacers to match factory taper — no drilling required
• FK 7/8" chromoly heim joints for adjustment and reduced flex
• AN/Mil-spec hardware with pinch bolt and jam nut
• Fits Ford Ranger 2019–2023 (2WD/4WD)

These control arms are aimed at enthusiasts seeking stronger, adjustable front suspension components without unnecessary modification to the spindle. Note that wheel size, offset, and tire choice can affect clearance; trimming inner fenders or body mount adjustments behind the front tires may be necessary to prevent rubbing.
