Ford F 250/ 350 6" 4 Link System w/ Dirt Logic Front 2.5 Resi Coilovers and Rear 2.25 Dirt Logic Shocks by Fabtech (2017) 4WD
Ford F 250/ 350 6" 4 Link System w/ Dirt Logic Front 2.5 Resi Coilovers and Rear 2.25 Dirt Logic Shocks by Fabtech (2017) 4WD
Product
Information

$5,421.05
$6,505.25
Save: $1,084.20
Lowest Price Guaranteed
Brand:
Model:
F 350
Available Options
Drive now, Pay later with Affirm
or with PayPal

Both options will be available upon checkout.

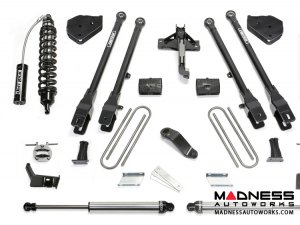

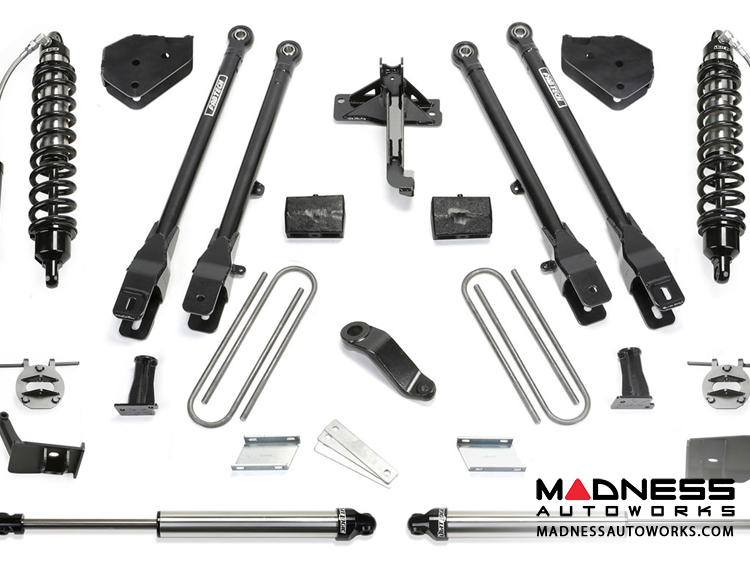

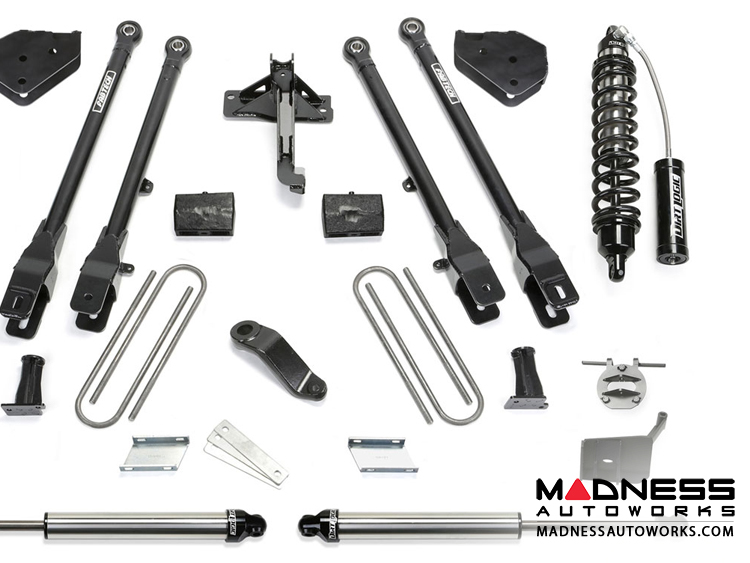

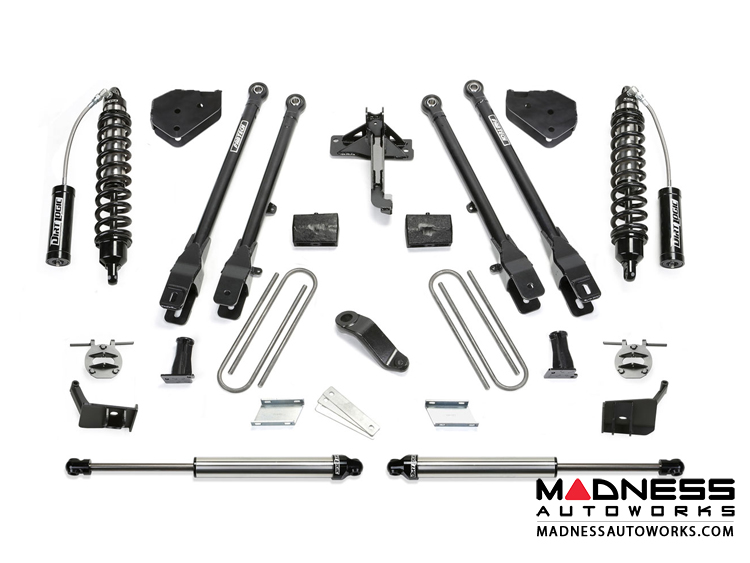

This system allows for the installation of 37” tall tires while providing unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength and 1/4" steel brackets to secure the 4 Links to the frame without cutting or welding. This 4 Link system comes complete with replacement Coil Springs, Sway Bar drops, a Pitman Arm, and a rear Block & U-Bolt kit.
Tire Fitment Guide
- Use 37/12.50R17 tires w/ 17x9 wheels w/ 4-3/4" BS w/ minor trimming
- Use 37/12.50R18 tires w/ 18x9 wheels w/ 4-3/4" BS w/ minor trimming
- Use 37/13.50R20 tires w/ 20x9 wheels w/ 5" BS w/ minor trimming
Front Dirt Logic 2.5 Resi Coilovers
- 2.50" OD Stainless Steel Body
- 2.25" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 5/8" Spherical Ball Mounting Ends
- 2.50" OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
- 2.25" OD Stainless Steel Body
- 2.0" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
- NON DUALLY MODELS ONLY.
- WILL NOT FIT GAS MOTORS.
- VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.
