Ford F 250 8" 4 Link ADD-A-Leaf System w/ Dirt Logic Shocks by Fabtech (2008 - 2016) 4WD w/ Factory Overload
Ford F 250 8" 4 Link ADD-A-Leaf System w/ Dirt Logic Shocks by Fabtech (2008 - 2016) 4WD w/ Factory Overload
Product
Information
Drive now, Pay later with Affirm
or with PayPal

Both options will be available upon checkout.

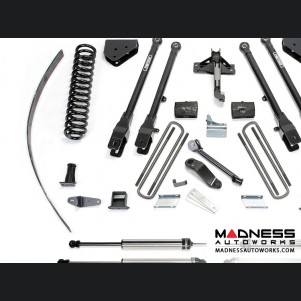

This system allows for the installation of 37” tall tires while providing unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength and 1/4" steel brackets to secure the 4 Links to the frame without cutting or welding. This 4 Link system comes complete with replacement Coil Springs, Sway Bar drops, rear ADD-A-Leafs, a Pitman Arm, and a rear Block & U-Bolt kit.
Please call us as there are different shock options available (Stealth & Performance)
Tire Fitment Guide
- Use 355/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming
- Use 37/13.50R20 tires w/ 20x10 wheels w/ 4 1/2” BS w/ minor trimming
- 2.25" OD Stainless Steel Body
- 2.0" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
- Front drive shaft modification may be required to clear exhaust on gas motor.
