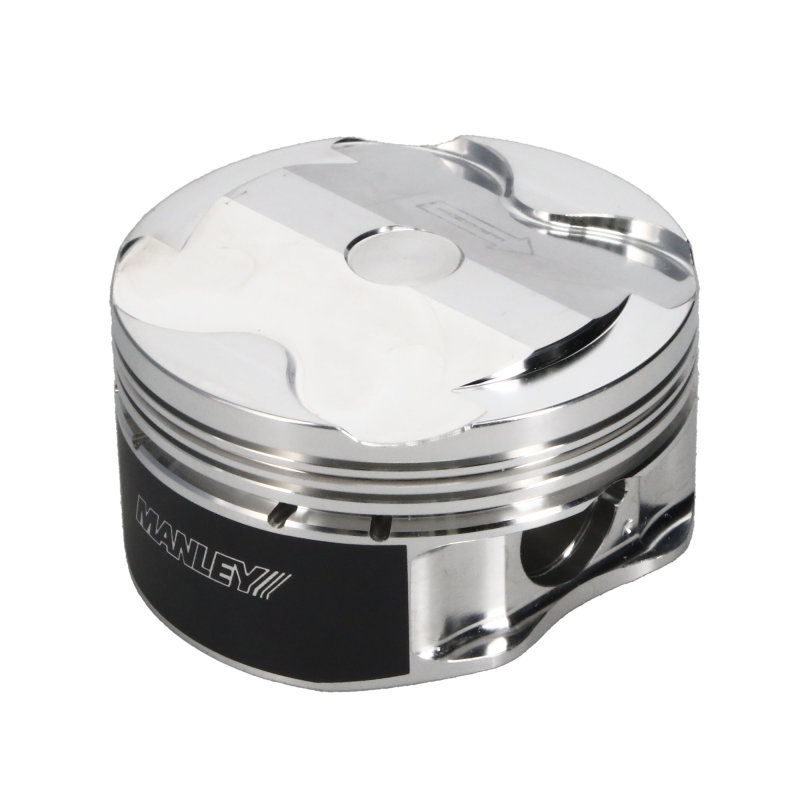

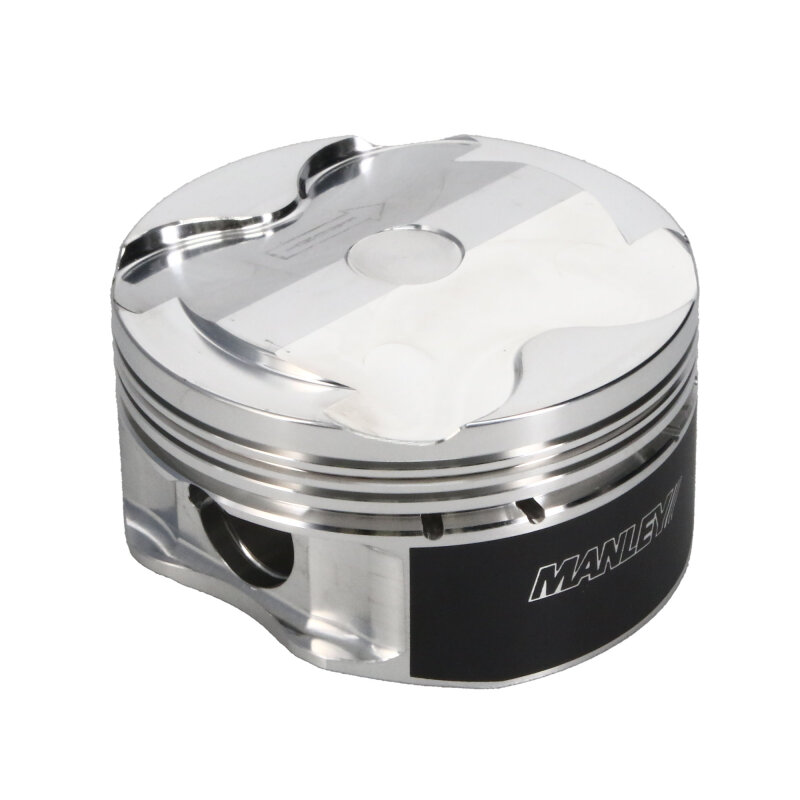

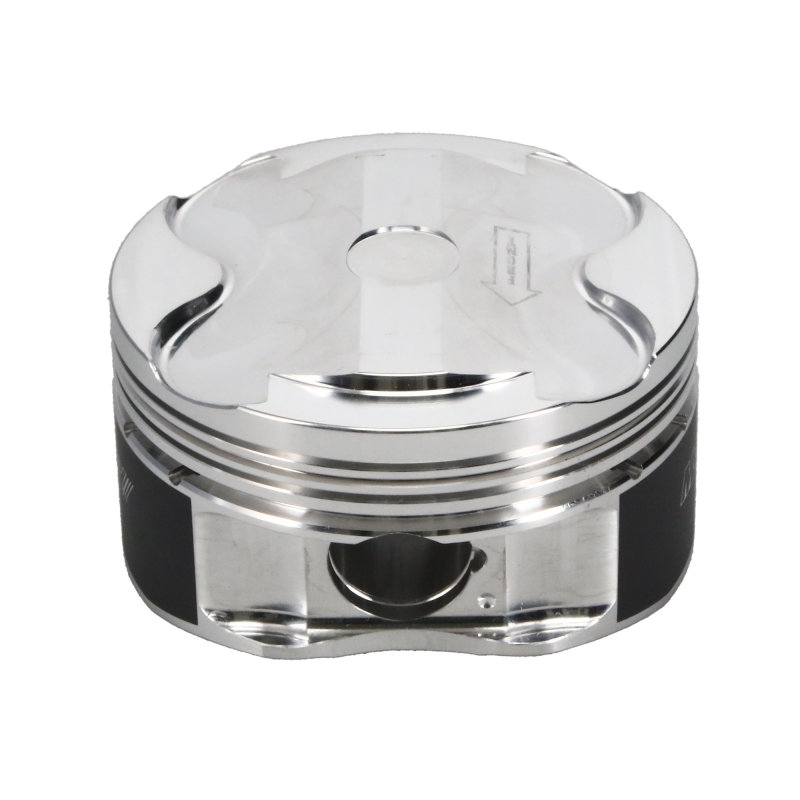

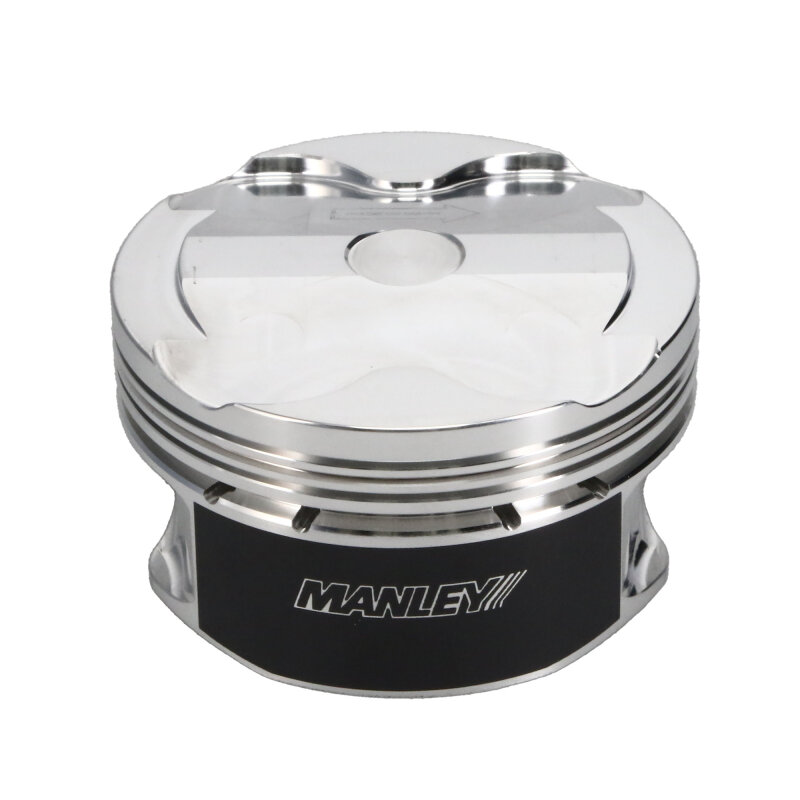

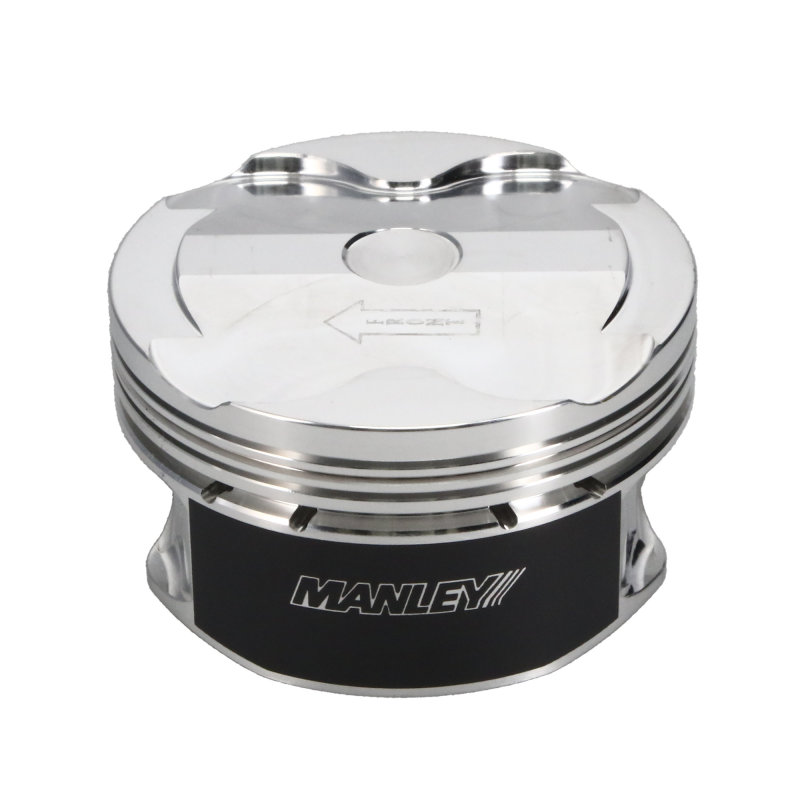

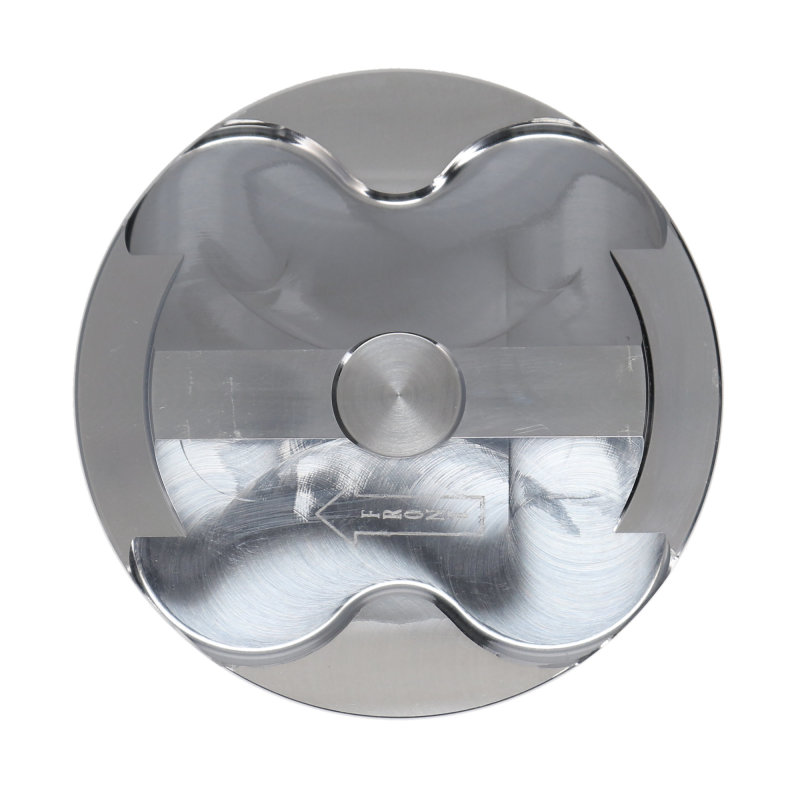

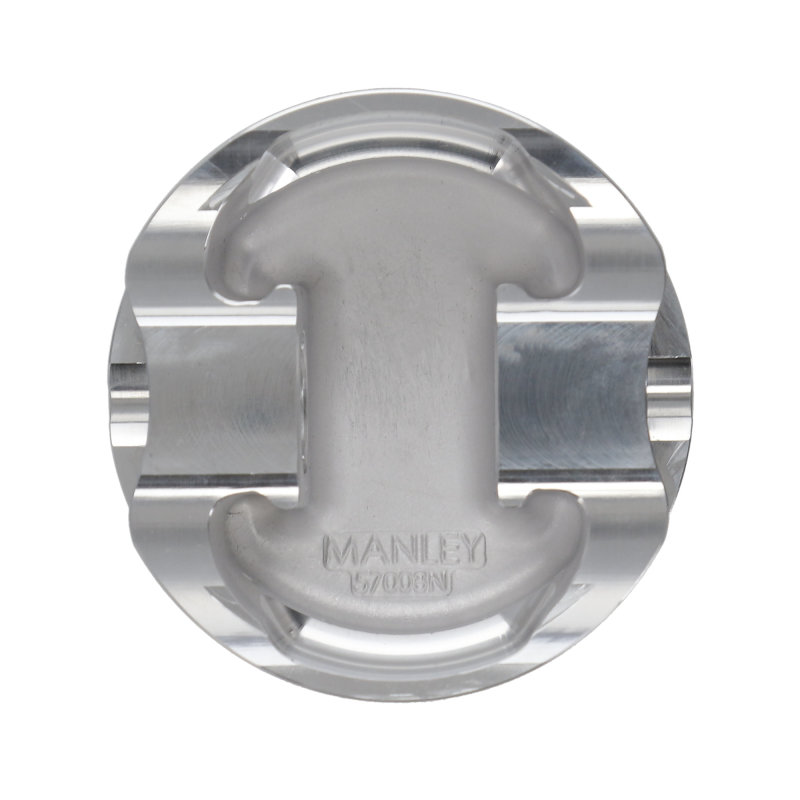

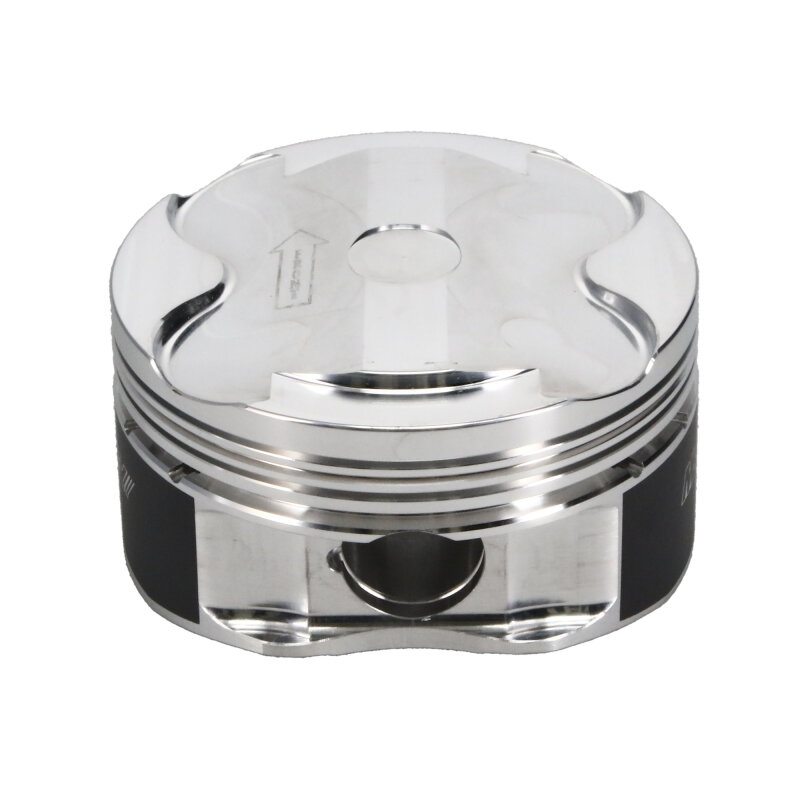

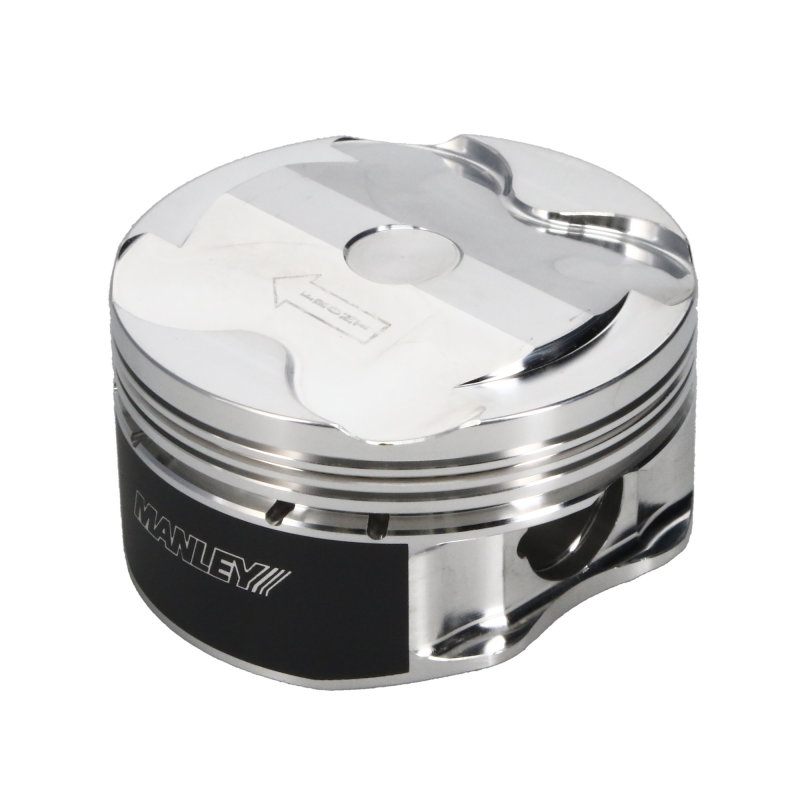

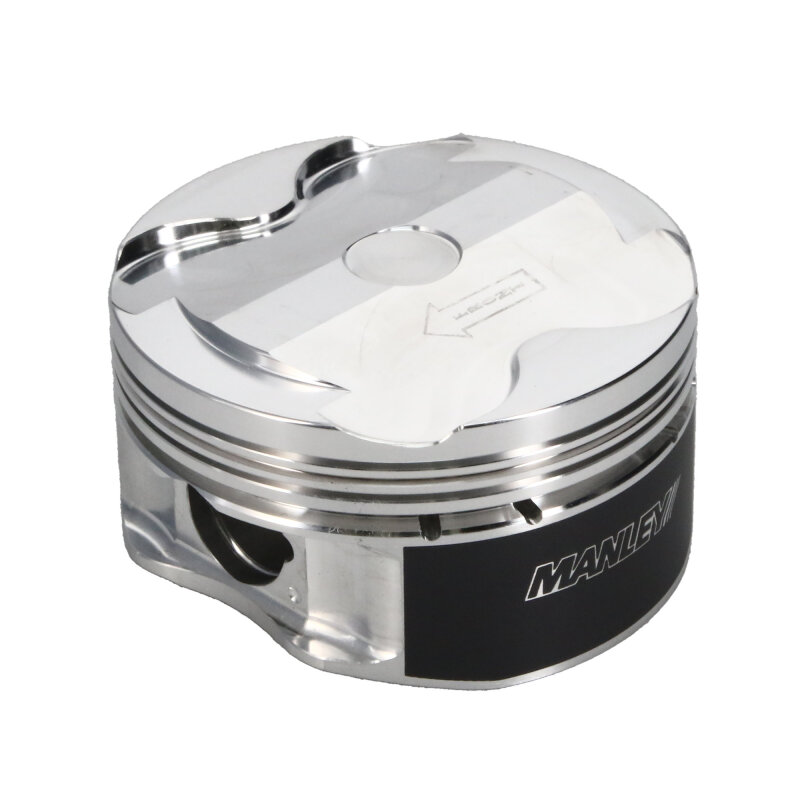

Ford Coyote Piston Set - Manley Performance - Platinum Series, 2618 Alloy - `18-`27. Forged pistons for 2018+ 5.0L Coyote builds, delivering strength, precision, and dependable performance for serious enthusiasts.
Manley’s Platinum Series employs domestic 2618 alloy forgings with optimized cam and barrel skirt profiles and precision ring lands and grooves. Unique fixturing machines skirts and ring grooves in one operation for true ring-to-skirt squareness. This set includes robust tool steel wrist pins and is built for consistent ring seal and durability in demanding street and track use. Key specs for this Ford application include 3.672 in bore, 1.165 in compression height, 22 mm pin, and 6.75 cc volume; moly skirt coating is available on select part numbers.
Features
- Domestic 2618 alloy forgings
- Tool steel wrist pins
- Precision ring lands and grooves
- Single-operation skirt and ring groove machining
- Optimized cam and barrel skirt profiles
- Ford Coyote 5.0L spec: 3.672 in bore, 1.165 in CH, 22 mm pin, 6.75 cc volume
Have questions or planning a specific combination? Call our teams in Austin, Texas and the Los Angeles, California area for parts guidance, installation, and customization at 512-982-9393 (TX) or 562-981-6800 (CA).
Thinking about purchasing multiple items? Contact us for shipping discounts. We install on premises at both locations.
