Volkswagen Arteon Fuel Injection System – APR Port Injection System (2.0T EA888.3, 2019–2021). A purpose-built MPI solution supplying the hardware needed when your build requires port injection with APR turbocharger software.

This kit includes four 980 cc ethanol-compatible Bosch Motorsport injectors, an OEM fuel rail with rail sensor and mounting kit, an APR fuel distribution block, a Bosch Jetronic-to-OEM harness, and hardware to install on the factory intake manifold. It is intended for use only where required by an APR turbocharger system upgrade with matching ECU software. E85 and M100 compatible, with a 30° single-cone spray pattern, top-feed design, and support for up to 8 bar in motorsport configurations.

Features

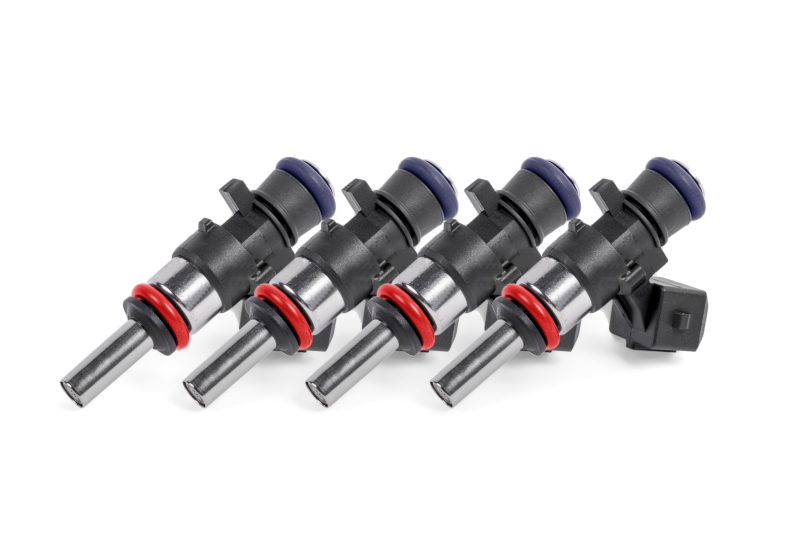

• Four Bosch EV14 CKxT MPI injectors (0280158040), 12 Ω, 33.6 mm body, 24 mm extended tip
• 980 cc/min flow; ethanol-compatible components

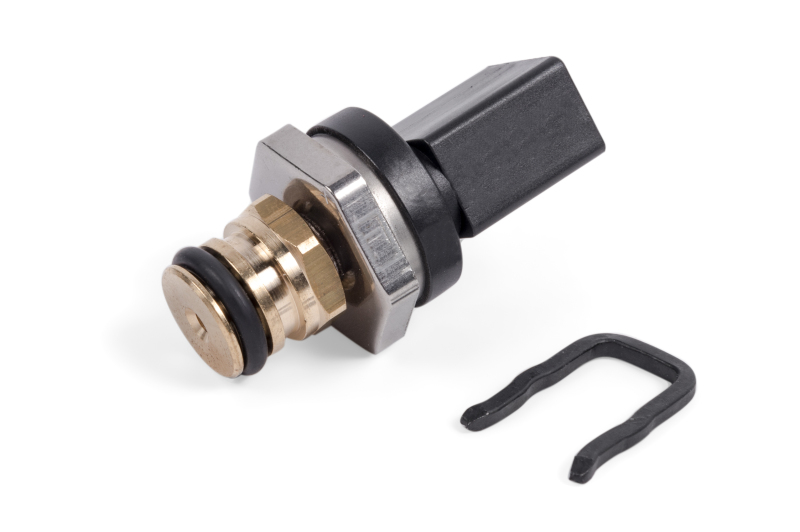

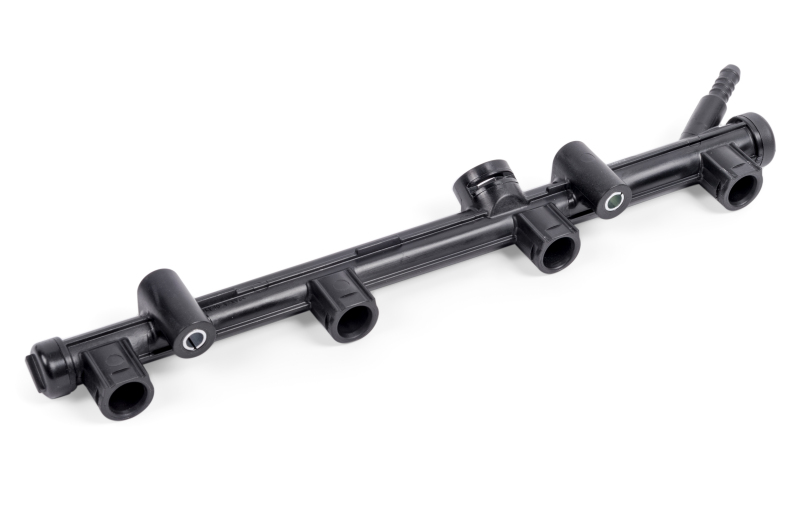

• OEM fuel rail, rail sensor, and mounting kit included

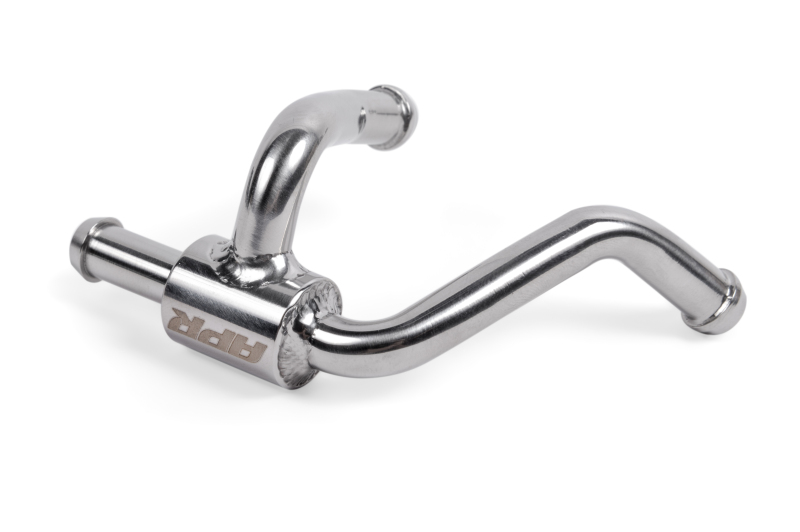

• APR fuel distribution block and Bosch Jetronic-to-OEM harness
• 30° single-cone spray pattern; supports up to 8 bar (motorsport)
• Designed for VW Arteon 2019–2021 (2.0T EA888.3); ECU software required

Questions or need guidance for your Arteon build? Call us at 512-982-9393 (TX) or 562-981-6800 (CA). We offer installation and customization services at our Austin, Texas and Los Angeles, California area locations. Considering multiple items? Contact us for shipping discounts. We install on premises at both locations.
