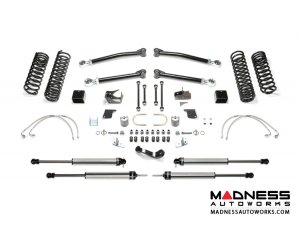

Jeep Wrangler 3" Long Travel Trail System w/ 2.25 Non Resi Dirt Logic Shocks by FABTECH - 2 Door JK (Short Arm)
Drive now, Pay later!Make monthly payments with no hidden fees! Learn More
This Short Arm Trail system replaces all four lower link arms because of their vulnerability when off roading. The heavy duty Link Arms maintain factory parallel joint angles in effort to reduce bushing wear and are made of .250” thick wall tubing to guarantee a solid product. Included in this kit are Fabtech's 5 Ton Joints and are armed with a lifetime warranty against deteriorating. The 1/4" Track Bar brackets re-center the axles to accommodate for the increased ride height. Included in this system are Fabtech’s dual rate Long Travel coil springs and front lower shock mounts that also aid for maximum offroad articulation and travel.

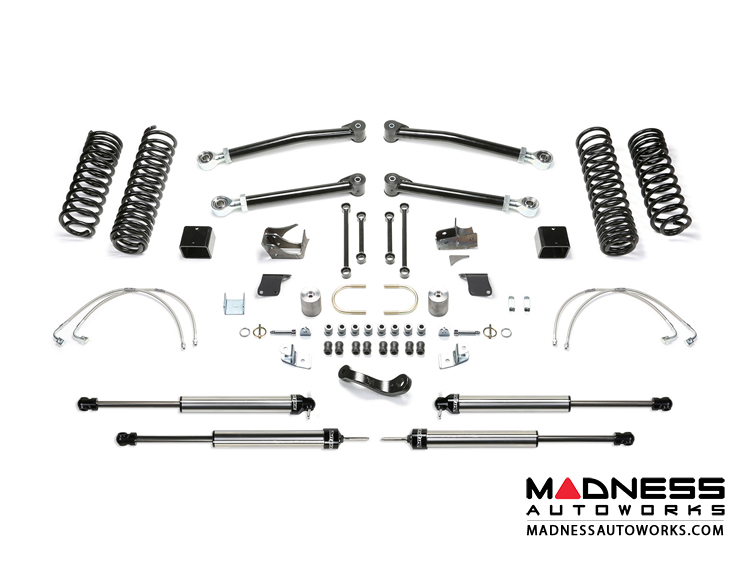

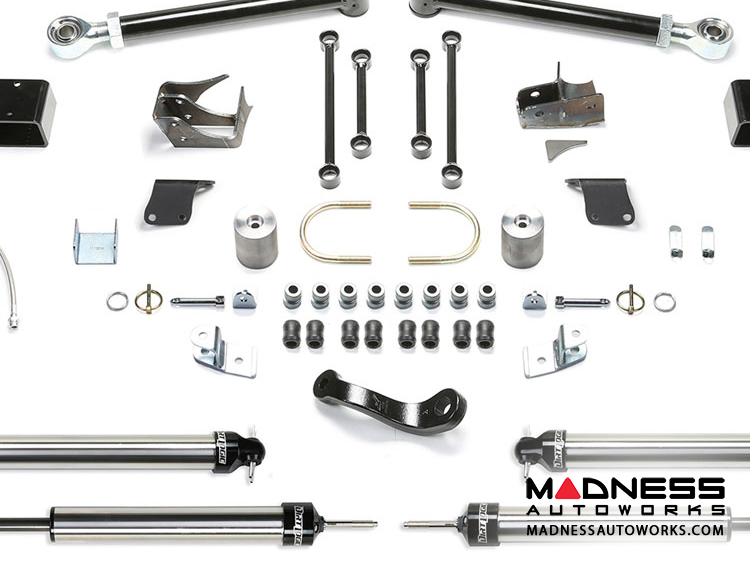

Trail Long Travel Systems Include:
- Lower Short Arm Links Front & Rear
- Long Travel Coil Springs Front & Rear
- Lower Long Travel Shock Brackets Front
- Track Bar Brackets Front & Rear
- Sway Bar Links Front & Rear
- Pitman Arm
- Brake Lines Front & Rear
- E Brake Bracket
- Bump Stop Extensions Front
- Bump Stop Brackets Rear
- Optional Upper Links available
- USE 35/12.50R17 TIRE W/ 17X9 WHEELS W/ 4.5” BS W/ MINOR TRIMMING
- USE 35/12.50R18 TIRE W/ 18X9 WHEELS W/ 4.5” BS W/ MINOR TRIMMING
- USE 325/65R18 TIRE W/ 18X9 WHEELS W/ 4.5” BS W/ MINOR TRIMMING
- USE 35/12.50R20 TIRE W/ 20X9 WHEELS W/ 5” BS W/ MINOR TRIMMING
- USE 325/60R20 TIRE W/ 20X9 WHEELS W/ 5” BS W/ MINOR TRIMMING
- INSTALLATION REQUIRES WELDING.
- EXHAUST SPACER (FTS24126) REQUIRED ON ALL 2012-17 JEEP WRANGLERS.
- REQUIRES DRIVESHAFTS 4 DOOR MODELS 07-11 FRONT (FTS94057) REAR (FTS94052).
- REQUIRES DRIVESHAFTS 4 DOOR MODEL 12-17 FRONT (FTS94057) REAR (FTS94059).
