Toyota Tundra 6" System w/ Front Dirt Logic 2.5 Coilover Resi & Rear Dirt Logic Shocks By Fabtech (2016 - 2017) 2WD/ 4WD
Toyota Tundra 6" System w/ Front Dirt Logic 2.5 Coilover Resi & Rear Dirt Logic Shocks By Fabtech (2016 - 2017) 2WD/ 4WD
Toyota Tundra 6" System w/ Front Dirt Logic 2.5 Coilover Resi & Rear Dirt Logic Shocks By Fabtech (2016 - 2017) 2WD/ 4WD

Toyota Tundra 6" System w/ Front Dirt Logic 2.5 Coilover Resi & Rear Dirt Logic Shocks By Fabtech (2016 - 2017) 2WD/ 4WD

Product Information

Inquire for Price

Lowest Price Guaranteed
Average Rating
Brand:
Model:
Tundra

Drive now, Pay later!

Toyota Tundra 6" System w/ Front Dirt Logic 2.5 Coilover Resi & Rear Dirt Logic Shocks By Fabtech (2016 - 2017) 2WD/ 4WD free shipping
Add this 6" System from Fabtech to your Tundra for show stopping performance and looks!

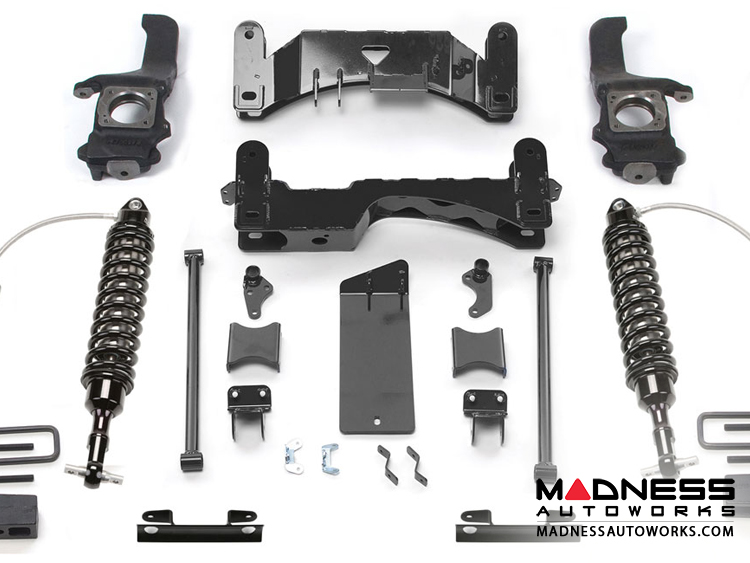

Fabtech's Tundra systems include extended length ductile iron steering knuckles specifically designed to operate in accordance to the factory steering geometry and create a functional turning radius while equipped with oversized tires and wheels. Relocation of the factory lower control arms is made possible with high arched 1/4" thick steel cross members that has an integrated differential skid plate for added protection. The factory front sway bar is retained using sway bar drops. This Performance system includes Dirt Logic 2.5 Coilover shocks and a 3" block and u-bolt system to accomplish lift in the rear.

Please call us as there are different shock options available (Resi, Non Resi)

Tire Fitment Guide For This Kit:
  • Use 35/12.50R18 tires w/ 18x9 wheels w/ 5 1/2”BS w/ minor trimming
  • Use 35/12.50R20 tires w/ 20x9 wheels w/ 5 1/2”BS w/ minor trimming
Shock Features:

Front Dirt Logic 2.5 Resi Coilovers
  • 2.50" OD Stainless Steel Body
  • 2.25" OD Billet Aluminum Piston
  • 7/8" NitroSteel® Black Piston Rod
  • Adjustable Coilover Construction
  • 5/8" Spherical Ball Mounting Ends
  • 2.50" OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
Rear Dirt Logic SS 2.25 Shocks
  • 2.25" OD Stainless Steel Body
  • 2.0" OD Billet Aluminum Piston
  • 7/8" NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends
  • Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
Notes:
  • Can not use OEM wheel and tire.
  • Double Cab & CrewMax 5.7L w/ Auto Trans only.
  • Will not allow use of 17" wheels.

About Manufacturer

Located in Chino, California our headquarters spans across five acres. The custom building was constructed to Fabtech's specification for in house development, manufacturing, distribution and administration. The 100,000 square foot facility is divided into designated departments that can operate as a single unit or collectively as a group. This allows Fabtech to function 24 hours a day as needed without compromising security, capacity or quality of the operations.

Fabtech's development capabilities are second to none with over 20 years of experience in aftermarket suspension design. State of the art software, fabrication equipment along with our seasoned engineers and fabricators allow the company to develop products that are constantly on the cutting edge. Fabtech has received numerous awards for our designs that continue to lead the market.

Proper design in suspension development is key in providing a quality, trouble free product to the end consumer. Fabtech leads the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast.

New vehicle platforms now require a full integration of the vehicles electronics and sensors into the suspension design in order for the vehicle to properly function. Fabtech has invested into proprietary development processes and technologies to aid in properly designing new vehicle suspension systems that lead the industry.

In-field testing and multiple vehicle fit checks ensure products will fit properly during installation and provide years of trouble free service with superior vehicle ride qualities.

To ensure product quality, Fabtech builds all of its componentry in house. The manufacturing division is a world class lean environment dedicated to consistently producing quality parts in low or high volume production runs. Multiple laser cutters, robotic welders, forming equipment, machining centers and skilled welders provide flexibility and quality to its production.

Packaging, warehousing and distribution are contained within the building for immediate shipment world wide. Our Administrative staff provides support to the many divisions that make up the company while our knowledgeable Sales staff assists our valued customers.
