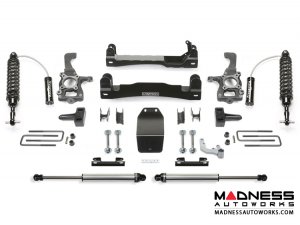

Ford F-150 4" Performance System w/ Dirt Logic Resi Coilovers and Shocks by Fabtech (2015 - 2017) - 4WD
Ford F-150 4" Performance System w/ Dirt Logic Resi Coilovers and Shocks by Fabtech (2015 - 2017) - 4WD
Product
Information
Drive now, Pay later with Affirm
or with PayPal

Both options will be available upon checkout.

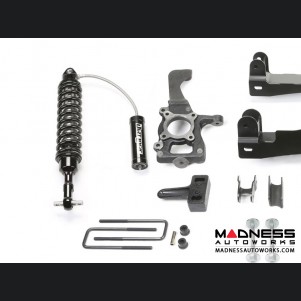

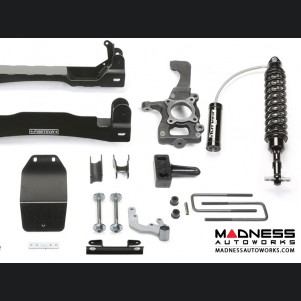

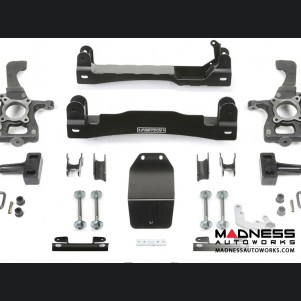

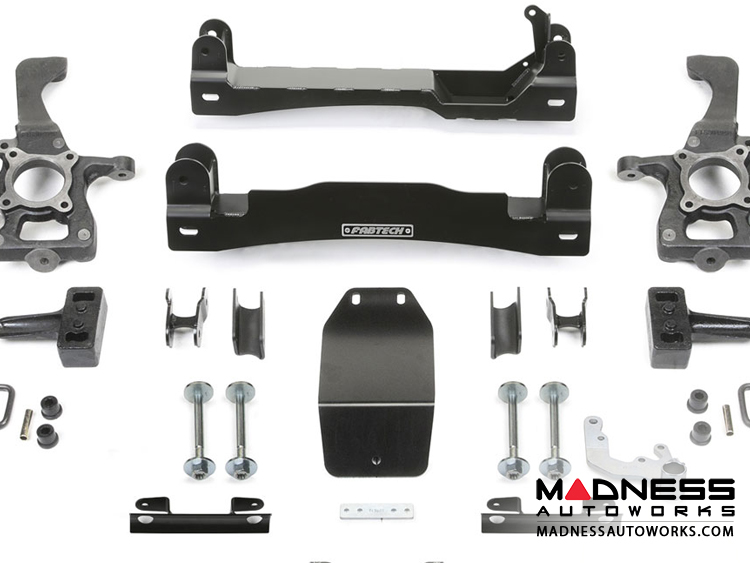

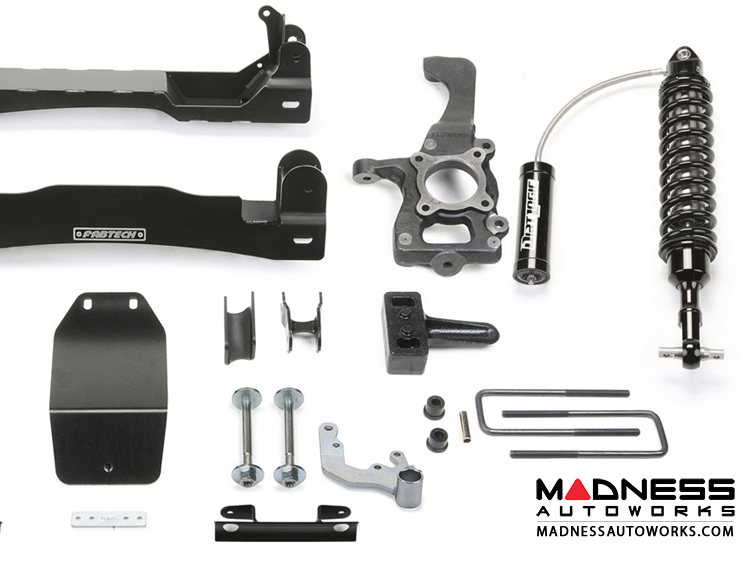

Fabtech’s new 4” F150 system allows the use of 35” tall tires and feature high arched lower control arm cross members constructed of 1/4 “ thick steel for maximum strength. The Fabtech iron steering knuckles retain the stock track width allowing the tires to stay fitted under the fender for a clean finished look. The rear lift is accomplished with a block and u bolt configuration.
The Performance System uses Dirt Logic Stainless Steel 2.5 Resi Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks.
Fitment w/ Stock Fenders
- Use 35/12.50R18 tires w/ 18x9 wheels w/ 5" BS w/ minor trimming
- Use 295/70R18 tires w/ 18x9 wheels w/ 5" BS w/ minor trimming
- Use 35/12.50R20 tires w/ 20x9 wheels w/ 5" BS w/ minor trimming
- Use 295/60R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming
- Can not use OEM wheel and tire.
- Does not fit Standard Cab.
- Will not fit Raptor models.
- Requires cutting of fender well sheet metal for use with 35” tires.

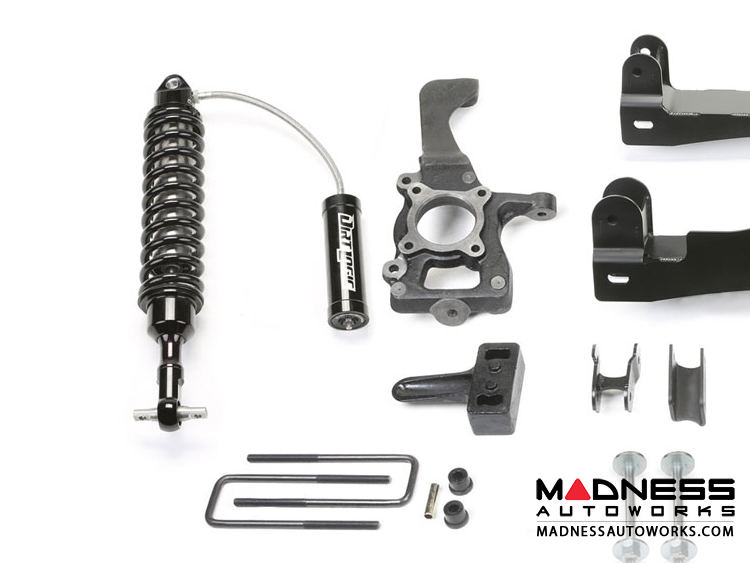

Front Dirt Logic Resi Coilovers
- 2.50" OD Stainless Steel Body
- 2.25" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 5/8" Spherical Ball Mounting Ends
- 2.50" OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
- 2.25" OD Stainless Steel Body
- 2.0" OD Billet Aluminum Piston
- 7/8" NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
- Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
- Can not use OEM wheel and tire.
- Does not fit Standard Cab.
- Will not fit Raptor models.
- Requires cutting of fenderwell sheetmetal for use with 35” tires.
