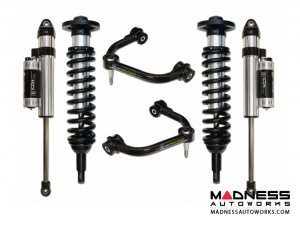

Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008)

Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008)

Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008)
Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008)
Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008)
Product Information
 price
$3,989.99
$4,199.99 Save: $210.00

Lowest Price Guaranteed
Average Rating
Model:
F 150

Available Options

Drive now, Pay later with Affirm
or with PayPal

Both options will be available upon checkout.

Ford F-150 2WD Suspension System - Stage 4 - (2004 - 2008) free shipping
Increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

This Stage 4 suspension system is the best choice for drivers looking to maximize the on and off road potential of their trucks and will inspire confidence behind the wheel in nearly any situation. Manufacturers engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5” coil over shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coil overs are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. Tubular upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock. The 2.5 Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear. 2.5" CDC reservoir rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. TheCDC Valve upgrade is included in this stage for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.

This system features upper control arms with the patent pending Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uni ball. While the industry standard uni ball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uni ball, and at the same time capable of greater angularity than a typical ball joint.

Features:
  • 04-08 Ford F-150 2WD
  • Increased wheel travel and ride quality over stock with no change in towing capacity
  • Vehicle specific tuned front and rear shocks for superior damping and vehicle control
  • Adjustable coil overs from 0-3" of lift height
  • ICON CDCV equipped rear shocks for full compression tune ability of your shocks
  • Tubular upper control arms for added strength, durability, and improved alignment geometry
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" polished nitro steel shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% bolt-on system - no drilling, cutting, or welding necessary for install
  • OEM Wheels & Tires: No
  • Aftermarket Wheels: 8-9" Wide Wheel With 5" Backspace
  • Aftermarket Tires: 33 x 11.50 Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
  • California Residents: WARNING



CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

About Manufacturer

ICON Vehicle Dynamics is a premiere performance suspension manufacturer specializing in aftermarket suspension components for trucks, SUV’s and off road suspension development. The company’s business is customer-driven, technology-influenced, engineering-oriented and focuses on world-class manufacturing processes and techniques. Led by head engineer and SCORE champion driver Dylan Evans, ICON Vehicle Dynamics has the unique qualities to design and build the highest quality suspension components and test them in both real world applications as well as race conditions.
